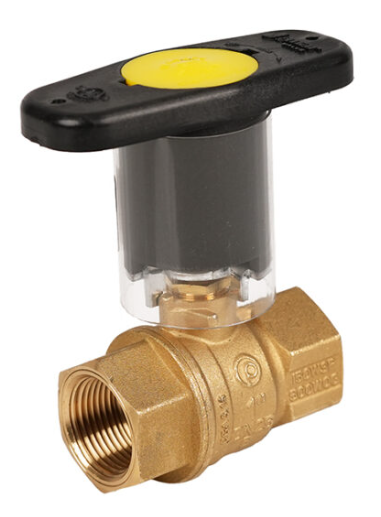

1-1/2" Jomar Valve T-100NE-IH, 2 Piece, Full Port, Brass, NPT Threaded, Thermal-Block Insulated Handle, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $192.83
$137.99
(You save
$54.84
)
- SKU:
- 100-707-IH
- Size:
- 1-1/2"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
Country of Origin: Made in Italy
1-1/2" Jomar Valve T-100NE-IH 2 Piece Ball Valve Technical Specs
Features
- Blow-out Proof Stem
- Triple Sealing Stem with 2 FKM O-Rings and PTFE G300 Seal
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
- 29 in-HG Vacuum Rating
- Accessories Available
Certifications/Approvals
- UL-2043 Certified Insulated Handle
- UL Listed (1/4" - 2")
- VQGU - Trim & Drain
- MHKZ - Manual Valves
- YQNZ - Compressed Gas Shut-Off Valves
- YRBX - Flammable Liquid Shut-Off Valves
- YRPV - Gas Shut-Off Valves
- YSDT - LP Gas Shut-Off Valves
- SFJQ - Valves, Refrigerant
- CSA Certified
- ANSI Z21.15 (.5 PSIG) (1/4" - 3")
- ASME B16.33 (125 PSIG) (1/2" - 2")
- ASME B16.38 (125PSIG) (2-1/2" - 4")
- CSA 3.16-15 (125 PSI) (1/4" - 4")
- CGA 9.2 (1/4" - 3")
- Delta C (3/8" - 3/4")
- MSS SP-110
- ANSI B1.20.1
- FM Approval (1/4" - 3/4" 600 WOG, 1" - 2" 500 WOG)
Technical Specifications
Item
Ball Valve
Size
1-1/2"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
Brass C37700
Ball Material
TEA Coated Brass
Handle Type
Thermal-Block Insulated Handle
Seat Material
PTFE
Stem Material
Brass
Stem Design
Blowout Proof
Max Pressure
500 psi WOG, 150 psi steam
