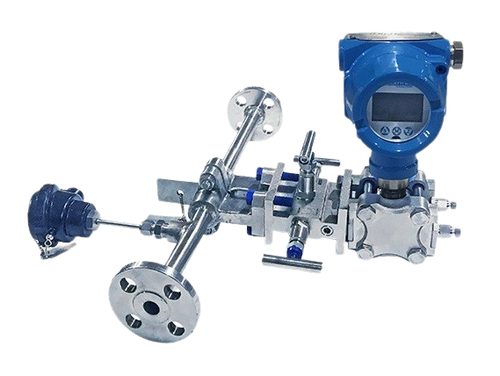

1-1/2" Tek-Trol Tek-DP 1610D-GASKET-1.5, Integral Orifice Assemblies- Gasket
Brand : Tek-Trol
Starting At:
$13.99
- SKU:
- 1610D-GASKET-1.5
- Size:
- 1-1/2"
- Size Dropdown:
- True
1-1/2" Tek-Trol Tek-DP 1610D-GASKET-1.5, Integral Orifice Assemblies- Gasket Technical Specs
Features
- Very high accuracy when equipped with associated piping.
- Process-wetted materials available for use with both corrosive and noncorrosive fluids.
- Various process pipe end connections available.
- Can be used with any differential pressure transmitter having standard process connections.
- The transmitter can be either integrally coupled or remotely connected.
- A 3-Valve Manifold is recommended for mounting between the Model TEK-DP 1610D Integral Orifice Assemblies and transmitter.
- Process-wetted material meets NACE Standard MR-01-75.
- Self-centering orifice plate design.
- No-flow-through transmitter body.
- Orifice plate manufacture consistent with ASME, ISO, and AGA-3 standards
Technical Specifications
Item
Integral Orifice Assemblies- Gasket
Line Size
1-1/2"
