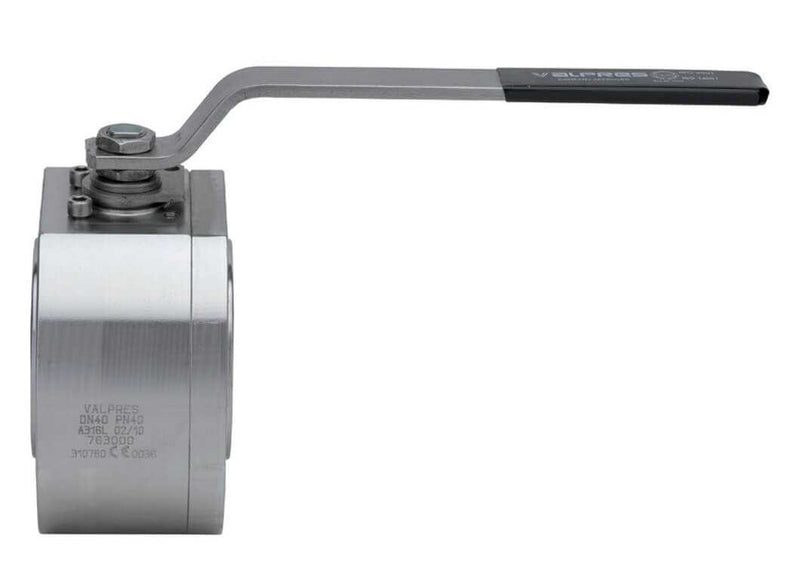

1-1/2" Bonomi 763100 - Ball Valve, Wafer Style, Stainless Steel, Full Port, Manually Operated

Name: 1-1/2" Bonomi 763100 - Ball Valve, Wafer Style, Stainless Steel, Full Port, Manually Operated
Brand: Bonomi Valves
SKU: 763100-1-1/2

SKU: 763100-1-1/2

Price on request

Available Sizes

1/2" 3/4" 1" 1-1/2" 2" 3" 4"

Size1-1/2"

Pressure ClassANSI 600

Body Material316 Stainless Steel

Temperature Rating-4°F to 366°F

PortFull Port

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Ball Valve
Design Type	Wafer Style
Brand	Bonomi Valves
Manufacturer Part #	763100-1-1/2
Size	1-1/2"

Materials & Construction

Body Material	316 Stainless Steel
Ball Material	316 Stainless Steel
Seat Material	R.T.F.E.
Packing Material	P.T.F.E./Graphoil
Handle Type	Lever
Stem Design	Blowout Proof

Performance

Pressure Class	ANSI 600
Pressure Rating	WOG
Temperature Rating	-4°F to 366°F

Connections

Port	Full Port

Standards & Certifications

See Specification Sheet
