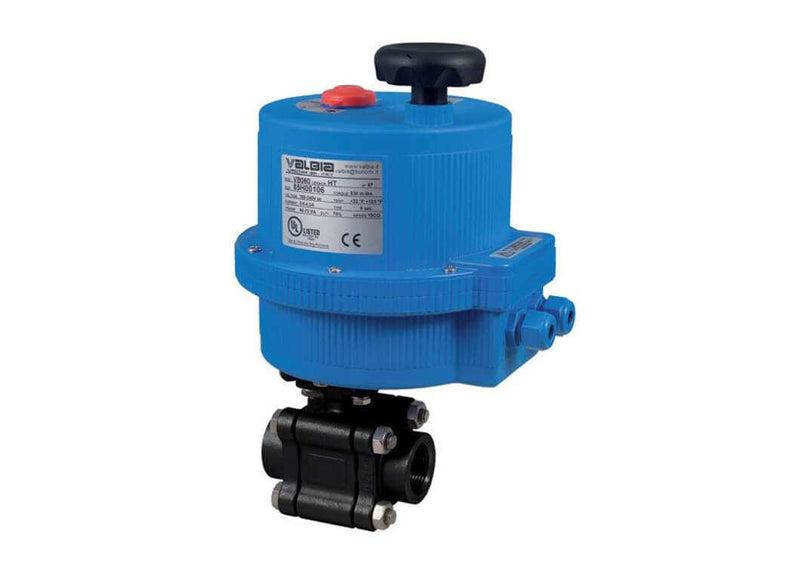

1-1/2" Bonomi 8E0630-00 - Ball Valve, Fire Safe, 2-way, 3-piece, Carbon Steel, FNPT Threaded, Full Port, with Electric Actuator

Name: 1-1/2" Bonomi 8E0630-00 - Ball Valve, Fire Safe, 2-way, 3-piece, Carbon Steel, FNPT Threaded, Full Port, with Electric Actuator
Brand: Bonomi Valves
SKU: 8E0630-002-1-1/2

SKU: 8E0630-002-1-1/2

$819.99 Was: $966.00 You Save $146.01

Available to Order

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Select Voltage: 24V AC/DC

Size1-1/2"

Pressure Rating2200 psi

Body MaterialCarbon Steel (WCB)

Connection TypeThreaded (FNPT x FNPT)

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Electrically Actuated Ball Valve
Size	1-1/2"
Design Type	3-Piece
Available Actuator Voltage	12V -AC/DC
Fail Position	None (Fail in Place)
Fire Safe	API 607
Duty Cycle	50% Duty Cycle (12/24V AC)
Brand	Bonomi Valves
Manufacturer Part #	8E0630-002-1-1/2

Materials & Construction

Body Material	Carbon Steel (WCB)
Ball Material	316 Stainless Steel
Seat Material	TFM-4215
Stem Design	Grounded Ball and Stem
Stem Material	316 Stainless Steel
Packing Material	TFM

Performance

Pressure Rating	2200 psi
Pressure Class	Class 900
Temp Rating	-50°F to 550°F
NEMA Rating	NEMA 4/4X

Connections

Port	Full Port
Connection Type	Threaded (FNPT x FNPT)

Standards & Certifications

See Specification Sheet
