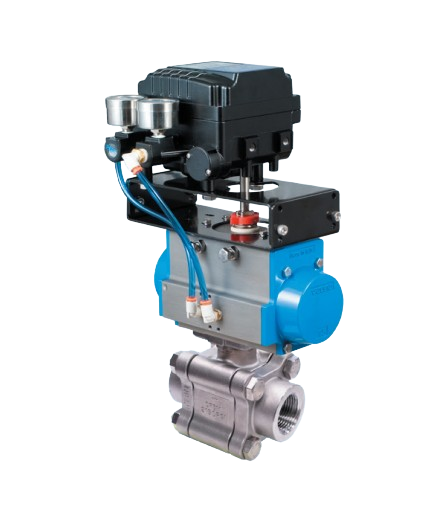

1-1/2" Bonomi EP730LLV*DA-1-1/2 30°/ 60°/ 90° V-Port Ball Valve, 3 Piece, Direct Mount, 2-Way, Stainless Steel, NPT Threaded, with Double Acting Pneumatic Actuator and Electro Pneumatic ENP-B 4-20 mA psi Positioner
SKU:
EP730LLV*DA-1-1/2
$1,639.99
Price on request
Was: $1,932.00
You Save $292.01
Available to Order
Size1-1/2"
Max. Pressure2160 psi, 250 psi steam
Body MaterialStainless Steel
Connection TypeNPT Threaded
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Ball Valve (V-Port) |
|---|---|
| Size | 1-1/2" |
| Ball Options | 30>< , 60>< , 90>< |
| Max. Process Temp. | -50> |
| Positioner | Electro Pneumatic ENP-B 4-20 mA psi Positioner |
| Actuation | Double Acting (DA) pneumatic |
| Brand | Bonomi Valves |
| Manufacturer Part # | EP730LLV*DA-1-1/2 |
Materials & Construction
| Body Material | Stainless Steel |
|---|---|
| Body Style | 3-Piece |
| Seat Material | TFM-4215 |
| Ball Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
Performance
| Max. Pressure | 2160 psi, 250 psi steam |
|---|---|
| Actuator Supply Pressure | Min. 80 psi and Max. 116 psi |
Connections
| Port | Full Port |
|---|---|
| Connection Type | NPT Threaded |
