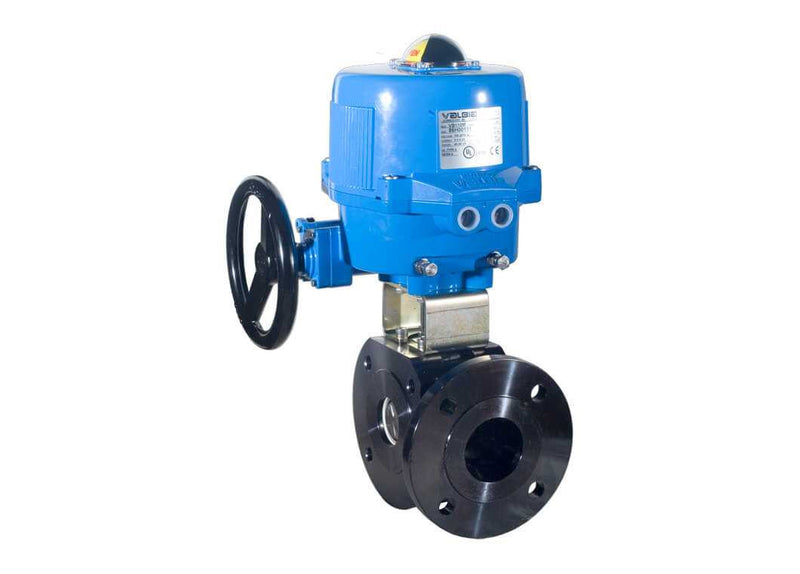

1-1/2" Bonomi M8E077-00 - 3-Way, Carbon Steel, L-Port, Ball Valve with Valbia Metal Electric Actuator

Name: 1-1/2" Bonomi M8E077-00 - 3-Way, Carbon Steel, L-Port, Ball Valve with Valbia Metal Electric Actuator
Brand: Bonomi Valves
SKU: M8E077-002-1-1/2

SKU: M8E077-002-1-1/2

$1,905.99 Was: $2,246.00 You Save $340.01

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Select Voltage: 24V AC/DC

Size1-1/2"

Pressure Rating275 psi (Refer to P/T Chart)

Body MaterialCarbon Steel

End ConnectionN/A

PortingL-Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	3-Way Electrically Actuated Ball Valve
Design Type	N/A
Control	On/Off
Available Voltages	100-240V - AC, 24V - AC/DC, 12V - AC/DC
Actuation Type	N/A
Brand	Bonomi Valves
Manufacturer Part #	M8E077-002-1-1/2
Size	1-1/2"

Materials & Construction

Body Material	Carbon Steel
Ball Material	316 Stainless Steel
Seat Material	R.P.T.F.E.
Packing Material	R.P.T.F.E.
Stem Design	Blowout Proof

Performance

Pressure Rating	275 psi (Refer to P/T Chart)
Temp. Rating	-4°F to 366°F (Refer to P/T Chart)
NEMA Rating	NEMA 4/4x

Connections

Porting	L-Port
Port	Reduced Port
End Connection	N/A

Standards & Certifications

See Specification Sheet
