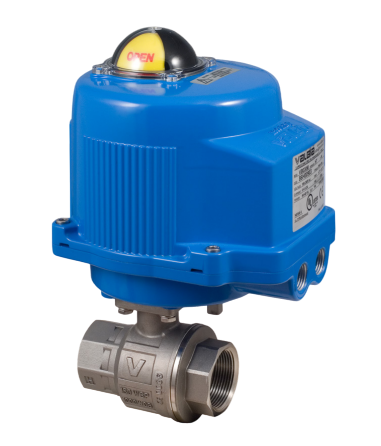

1-1/2" Bonomi M8E700076V**-0* 30°/ 60°/ 90° V-Port Ball Valve, 2-Way, Stainless Steel Direct Mount, NPT Threaded, with Metal Electric Actuator with Positioner OR Positioner with Battery Backup
SKU:
M8E700076V36-022-1-1/2
$1,110.99
Price on request
Was: $1,309.00
You Save $198.01
Available to Order
Select V-Ball:: 30-60° V-Ball
Select Voltage/Positioner/Battery Backup: (*022)-24V AC/DC w Positioner
Size1-1/2"
Max. Pressure1000 psi; 150 psi steam
Body MaterialCF8M Stainless Steel
Connection TypeNPT Threaded
PortV-Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve |
|---|---|
| Size | 1-1/2" |
| Ball Options | 30>< - 60>< , 60>< , 90>< |
| Max. Process Temp. | -4> |
| Available Actuator Package | 24V AC/DC |
| Duty Cycle | 75% Duty Cycle |
| Brand | Bonomi Valves |
| Manufacturer Part # | M8E700076V36-022-1-1/2 |
Materials & Construction
| Body Material | CF8M Stainless Steel |
|---|---|
| Seat Material | PTFE |
| Ball Material | ASTM A182 F316 Stainless Steel |
| Stem Type | Blowout Proof |
| Stem Material | ASTM A182 F316 Stainless Steel |
Performance
| Max. Pressure | 1000 psi; 150 psi steam |
|---|---|
| NEMA Rating | NEMA 4 |
Connections
| Port | V-Port |
|---|---|
| Connection Type | NPT Threaded |
Standards & Certifications
See Specification Sheet
