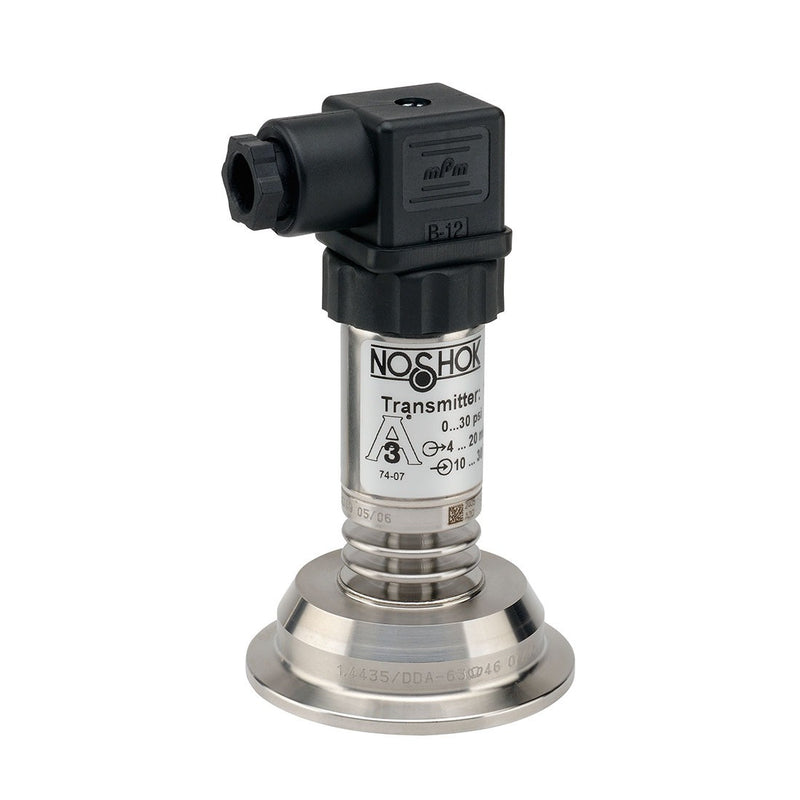

1-1/2" NOSHOK 11 Series Sanitary Clamp Pressure Transmitters 110-12-4-615-1-61-1-25, 0 to 300 psig, Sanitary Clamp, ±0.25% Accuracy (BFSL), 4 to 20 mA, Sanitary Transducer with M12 x 1 (4-Pin)

Name: 1-1/2" NOSHOK 11 Series Sanitary Clamp Pressure Transmitters 110-12-4-615-1-61-1-25, 0 to 300 psig, Sanitary Clamp, ±0.25% Accuracy (BFSL), 4 to 20 mA, Sanitary Transducer with M12 x 1 (4-Pin)
Brand: NOSHOK
SKU: 110-12-4-615-1-61-1-25

SKU: 110-12-4-615-1-61-1-25

Made in the United States

$1,137.99 Was: $1,264.02 You Save $126.03

Available

Available Sizes

1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 2" 2" 2"

Clamp Size1-1/2 in

Pressure Range0 to 300 psig

Electrical ConnectionM12 x 1 (4-Pin)

Storage Temperature [Min]-40 ºC

Typically ships in 3–5 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Type	Pressure Transmitter
Clamp Size	1-1/2 in
Full Scale Best Fit Straight Line (BFSL) Accuracy (±)	0.125 %
Output Signal	4 mA to 20 mA, 2-Wire, 0 Vdc to 5 Vdc 3-Wire, 1 Vdc to 5 Vdc 3-Wire, 1 Vdc to 6 Vdc 3-Wire, 0 Vdc to 10 Vdc, 3-Wire, 1 Vdc to 11 Vdc 3-Wire
Series	11
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6	150 g
Warranty	3 yr
Seal Fill Fluid	FFL77 White Oil
Transducer	Series 615 transducer
Stability	±0.2% full scale for 1 year, non-accumulating
Adjustment	±10% full scale for zero and span
Response Time	≤10 ms
Service Life	> 100,000,000 Load Cycles
Power Requirement	10 Vdc to 30 Vdc (4 mA to 20 mA, 2-Wire, 0 Vdc to 5 Vdc, 3-Wire, 1 Vdc to 5 Vdc, 3-Wire, 1 Vdc to 6 Vdc, 3-Wire) 14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-Wire, Vdc to 11 Vdc, 3-Wire)
Current for 4 to 20 Milliampere (mA)	0.020 A
Resistance for 1 to 5 Direct Current (DC) Voltage Output	≤ 5,000 O
Resistance for 0 to 10 Direct Current (DC) Voltage Output	≤ 10,000 O
Resistance for 0.5 to 4.5 Direct Current (DC) Voltage Output	≤ 4,500 O
Measuring Element	316 Stainless Steel
Electrical Protection	Reverse polarity, over-voltage and short circuit protection
Shock According to International Electrotechnical Commission (IEC) 60068-2-27	1,000 g
Brand	NOSHOK
Manufacturer Part #	110-12-4-615-1-61-1-25
Size	1-1/2"
Country of Origin	Made in the United States

Materials & Construction

Housing Material	316 Stainless Steel

Performance

Storage Temperature [Min]	-40 ºC
Storage Temperature [Max]	-40 ºC
Environmental Rating	Ingress Protection (IP65)
Pressure Range	0 to 300 psig
Electromagnetic Rating	European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection

Connections

Electrical Connection	M12 x 1 (4-Pin)
Connection Material	316 Stainless Steel

Dimensions & Weight

Weight	1.1 lb
Unit Net Weight	1.1 lb
