1-1/2" Watson McDaniel FDA510-16-TCTC Thermostatic Clean Steam (Repairable), Stainless Steel Body, 90 PSIG, 5/16" Orifice, Tri-Clamp (TC x TC)
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800Technical Specifications
General
| Model | FDA500 |
|---|---|
| Size | 1-1/2" |
| Part Number | FDA510-16-TCTC |
| Brand | Watson McDaniel |
| Manufacturer Part # | FDA510-16-TCTC |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Material | Stainless Steel |
|---|
Performance
| PMO Max. Operating Pressure | 90 PSIG |
|---|---|
| TMO Max. Operating Temperature | Saturated Steam Temperature |
| PMA Max. Allowable Pressure | 145 PSIG up to 338°F |
| TMA Max. Allowable Temperature | 350°F @ 132 PSIG |
Connections
| Connections | Tri-Clamp |
|---|
Overview

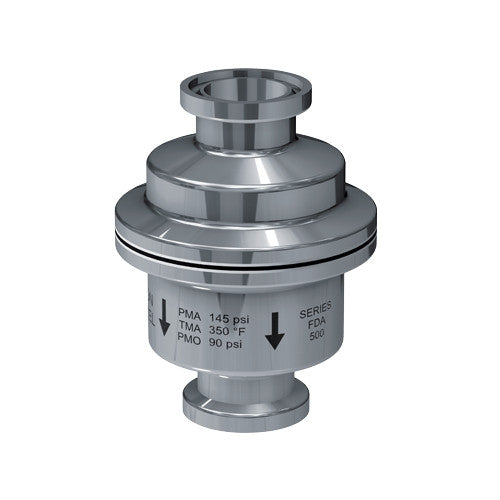

Watson McDaniel FDA510-16-TCTC Thermostatic Clean Steam, 5/16" Orifice, 90 PSIG - 1-1/2" Tri-Clamp (TC x TC)
Features:
- All wetted parts are 316L stainless steel.
- Electro-polish finish of 20-25 microinches RA on internal surfaces of body. Consult factory for 15RA max surface finish option.
- Electro-polish finish of 25-32 microinches RA on external surfaces of body.
- Operates close to saturation curve to minimize condensate back-up.
- Completely self-draining in the vertical downward flow orientation.
Options & Features (See Specification Sheet For Full List):
FDA500 Series Thermostatic Clean Steam (Repairable)
DRIP, PROCESS: The FDA500 Series thermostatic steam traps are used on clean steam applications as drip traps on piping runs as well as drainage for CIP/SIP systems and various process vessels.
DRIP, PROCESS: FDA500 Series thermostatic clean steam traps are used in clean steam applications as drip traps on piping runs as well as for drainage for CIP/SIP systems and various process vessels. Available with 2°F sub-cool bellows
How It Works
This trap contains a welded 316L stainless steel thermal element that expands when heated and contracts when cooled. When air and sub-cooled condensate are present, the trap is in an open discharge position. When steam reaches the trap, the element expands, closing the trap tightly.
Selection / Sizing / Capacities
The steam Trap shall be all 316L stainless steel thermostatic type with a balanced pressure bellows that operates close to saturated steam temperatures. Internal body parts shall have an electro-polish finish of 20-25 microinches RA internally and a 25-32 finish externally. The unit shall have a split-body sanitary clamp design for easy maintenance. Trap shall be completely self-draining when mounted vertically.
