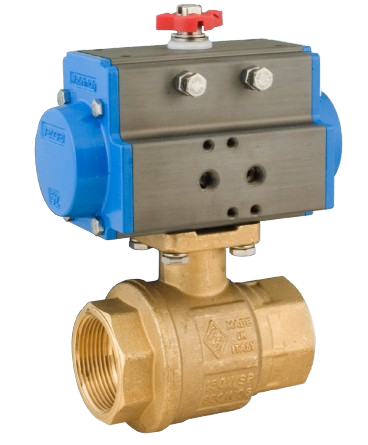

1-1/4" Bonomi 8P0136LF Ball Valve, 253N LF Direct Mount, 2-Way, Lead-Free Brass, NPT, Full Port with Spring Return Actuator
Brand : Bonomi Valves
MSRP: $457.00
$387.99
(You save
$69.01
)
- SKU:
- 8P0136LF-1-1/4
- Size:
- 1-1/4"
- Size Dropdown:
- True
- Processing Time:
- 12-14 Days
Country of Origin: Made in Italy
1-1/4" Bonomi 8P0136LF Ball Valve with Spring Return Actuator Technical Specs
Item
2-Way Pneumatically Actuated Ball Valve
Size Range
1-1/4"
Body Material
Lead-Free Brass
Port
Full Port
Ball Material
Stainless Steel
Seat Material
PTFE
Stem Material
Stainless Steel
End Connection
NPT Threaded
Pressure Rating
600 psi WOG
Temp. Rating
-4°F to 366°F
Actuator Supply Pressure
Min. 80 psi and Max. 116 psi
Actuation Type
Spring Return (SR) Pneumatic
Approvals
See Specification Sheet
