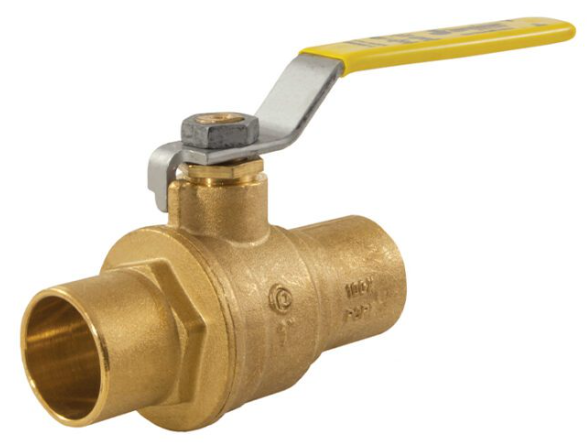

1/2" Jomar Valve S-100NE, 2 Piece, Full Port, Brass, Soldered Ends, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $20.95
$15.99
(You save
$4.96
)
- SKU:
- 100-803
- Size:
- 1/2"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
Country of Origin: Made in Italy
1/2" Jomar Valve S-100NE 2 Piece Ball Valve Technical Specs
Features
- Triple Sealing Stem with 2 FKM O-Rings and 2nd Generation PTFE Seal
- Blow-Out Proof Stem
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
- 29 in-Hg Vacuum Rating
- Accessories Available
Certifications/Approvals
- MSS SP-110
- ASME/ANSI B16.18
- FM Approval (1/2" - 3/4" 600 WOG, 1" - 2" 500 WOG
Technical Specifications
Item
Ball Valve
Size
1/2"
Port
Full Port
Design Type
2-Piece
End Connection
Solder
Body Material
Brass CW617N
Ball Material
TEA Coated Brass
Handle Type
Lever
Seat Material
PTFE
Stem Material
Brass
Stem Design
Blowout Proof
Max Pressure
600 psi WOG, 150 psi steam
