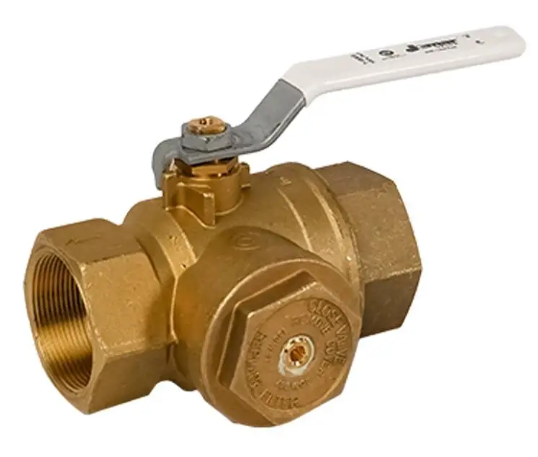

1/2" Jomar Valve T-100FBG, Combination Shutoff Valve & Strainer, Full Port, NPT Threaded, Dezincification Resistant Brass, 400 WOG 3-Way Ball Valve
Brand : Jomar Valve
MSRP: $67.61
Starting At:
$48.99
(You save
$18.62
)
- Size Dropdown:
- True
Country of Origin: Made in Italy
1/2" Jomar Valve T-100FBG 3-Way Ball Valve Technical Specs
Features
This valve comes standard with a 304 SS 28 mesh screen. Mesh options 40, 60, 80, and 100 are available upon request
- Dezincification Resistant Brass Alloy
- Three-Way Ball Valve
- Triple Sealing Stem with 2 FKM O-Rings and Teflon Seal
- Blow-out Proof Stem
- Shipped Standard with 304 SS 28 Mesh Screen ( Available Mesh Screens: 40, 60, 80, 100)
- Reversible Handle
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- NSF/ANSI/CAN 61-G
- ANSI B1.20.1
Technical Specifications
Item
Ball Valve
Size
1/2"
Port
Full Port
Body Type
3-Way
End Connection
NPT Threaded
Body Material
Lead Free Brass - C27453
Ball Material
Chrome Plated Brass - C28500
Ball Type
Filter Ball: 304 SS 28 Mesh Screen
Handle Type
Reversible Handle
Seat Material
PTFE
Stem Material
Lead-Free Brass
Stem Design
Blowout Proof
Max Pressure
400 psi WOG, 150 psi steam
Temp. Range
0°F to 500°F
