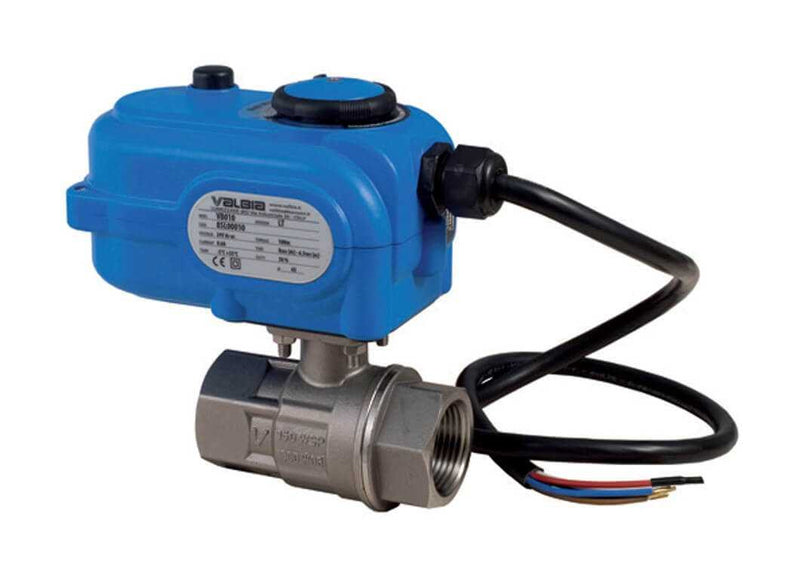

1/2" Bonomi 8E867-00 - Ball Valve, 2-way, 2-piece, Stainless Steel, FNPT Threaded, Full Port, with Electric Actuator
SKU:
8E867-002-1/2
$351.99
Price on request
Was: $414.00
You Save $62.01
Available to Order
Select Voltage: 24V AC/DC
Size1/2"
Pressure Rating1000 psi, 150 psi steam (Refer to P/T Chart)
Body MaterialCF8M Stainless Steel
End ConnectionFNPT Threaded
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve |
|---|---|
| Design Type | 2-Piece |
| Control | On/Off |
| Available Voltages | 100-240V - AC, 24V - AC/DC |
| Actuation Type | Electric (Fail in Place) |
| Brand | Bonomi Valves |
| Manufacturer Part # | 8E867-002-1/2 |
| Size | 1/2" |
Materials & Construction
| Body Material | CF8M Stainless Steel |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 1000 psi, 150 psi steam (Refer to P/T Chart) |
|---|---|
| Temp. Rating | 23°F to +131°F (Refer to P/T Chart) |
| NEMA Rating | Type 4 |
Connections
| Port | Full Port |
|---|---|
| End Connection | FNPT Threaded |
Standards & Certifications
See Specification Sheet
