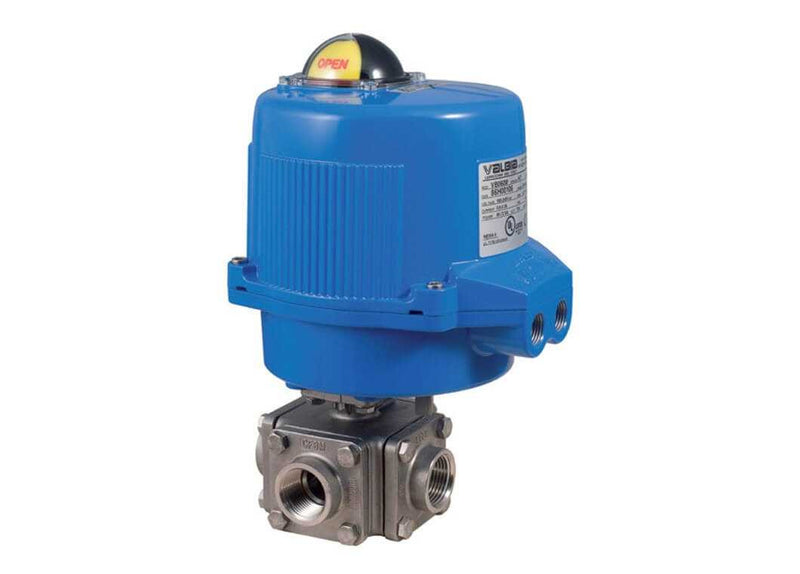

1/2" Bonomi ME97X-00 - Ball Valve, Double L-Port, Block Body, Stainless Steel, FNPT Threaded, Full Port, with Metal Electric Actuator

Name: 1/2" Bonomi ME97X-00 - Ball Valve, Double L-Port, Block Body, Stainless Steel, FNPT Threaded, Full Port, with Metal Electric Actuator
Brand: Bonomi Valves
SKU: ME97X-002-1/2

SKU: ME97X-002-1/2

$952.99 Was: $1,123.00 You Save $170.01

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Select Voltage: 24V AC/DC

Size1/2"

Pressure Rating1/2" to 1" - 1000 psi, 1-1/4" to 2" - 800 psi, 2-1/2" to 3" - 600 psi, 4" - 300 psi (Refer to P/T Chart)

Body MaterialCF8M Stainless Steel

End ConnectionFNPT Threaded

PortingDouble L-Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Multiport Electrically Actuated Ball Valve
Design Type	Block Body
Control	On/Off
Available Voltages	12V/24V AC/DC and 100-240V AC
Actuation Type	Electric (Fail in Place)
Brand	Bonomi Valves
Manufacturer Part #	ME97X-002-1/2
Size	1/2"

Materials & Construction

Body Material	CF8M Stainless Steel
Ball Material	316 Stainless Steel
Seat Material	Carbon Filled P.T.F.E.
Packing Material	P.T.F.E.
Stem Design	Blowout Proof

Performance

Pressure Rating	1/2" to 1" - 1000 psi, 1-1/4" to 2" - 800 psi, 2-1/2" to 3" - 600 psi, 4" - 300 psi (Refer to P/T Chart)
Temp. Rating	-4°F to +131°F
NEMA Rating	NEMA 4

Connections

Porting	Double L-Port
Port	Full Port
End Connection	FNPT Threaded

Standards & Certifications

See Specification Sheet
