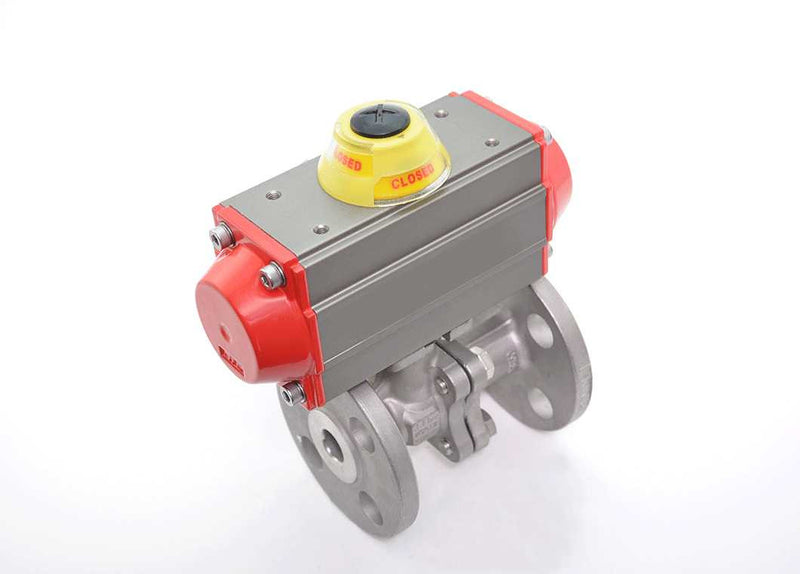

1/2" JFlow DM2533FTMTMF1-JFC-050S - Stainless Steel, Flanged, Ball Valve, Pneumatic, Fail Open or Close

Name: 1/2" JFlow DM2533FTMTMF1-JFC-050S - Stainless Steel, Flanged, Ball Valve, Pneumatic, Fail Open or Close
Brand: JFlow Controls
SKU: 3-2533FTTTF10050S

SKU: 3-2533FTTTF10050S

Made in Taiwan

$362.99 Was: $672.72 You Save $309.73

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/2" 2" 2-1/2" 3" 4" 6"

Size1/2"

Max. Pressure285psi

Body Material316 Stainless Steel

Connection Type150# Flange

Temperature Range-40F - +450F

PortFull

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Ball Valve
Size	1/2"
O-Ring	Viton
Actuator Action	Spring Return
Fail Position	Please Choose
Sized For	80 PSI of available air pressure
Brand	JFlow Controls
Manufacturer Part #	3-2533FTTTF10050S
Country of Origin	Made in Taiwan

Materials & Construction

Body Material	316 Stainless Steel
Ball Material	316 Stainless Steel
Seat Material	Teflon (TFM-1600)
Stem Packing	Teflon (TFM-1600)
Stem Material	316 Stainless Steel

Performance

Max. Pressure	285psi
Temperature Range	-40F - +450F

Connections

Port	Full
Connection Type	150# Flange
