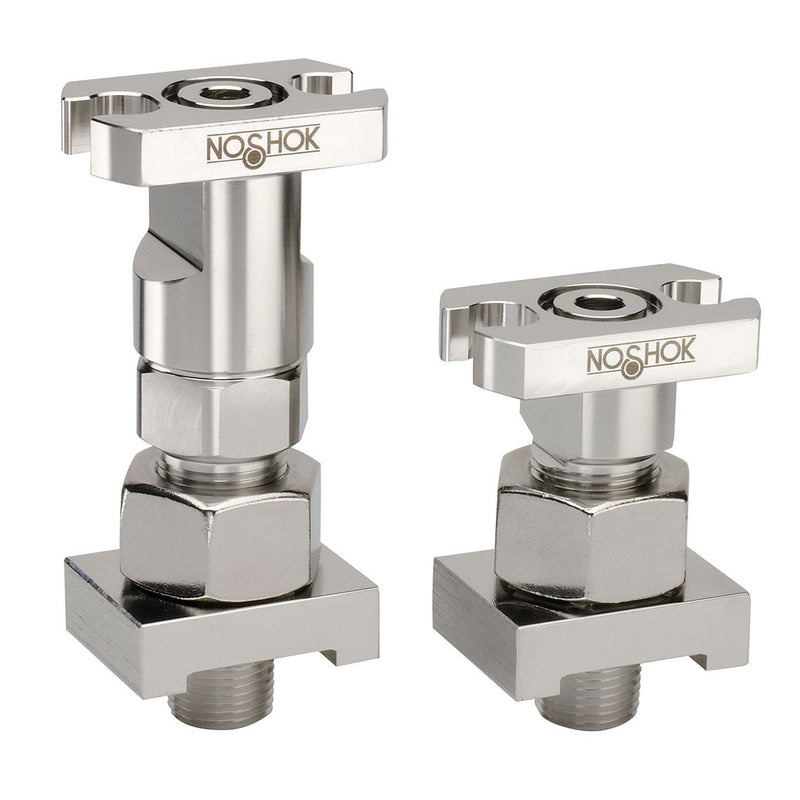

1/2" NOSHOK SZ Series Stabilized & Non-Stabilized Connectors, SZC2, Steel Short Stabilized Connector Pair, Flange Adapter
SKU:
SZC2
Made in the United States
$297.99
Price on request
Was: $330.97
You Save $32.98
Available
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature10,000 psi
Connection TypeNational Pipe Thread (NPT), Flange
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Stabilized Connector |
|---|---|
| Orifice Size | 0.375 in |
| Series | SZ |
| Connector Type | Short stabilized pair with flange adapter (For round installations, orifice flange) |
| Warranty | 3 yr |
| Length | 3-3/8 in |
| Brand | NOSHOK |
| Manufacturer Part # | SZC2 |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Material | Steel |
|---|---|
| Bolt Material | Carbon Steel |
Performance
| Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature | 10,000 psi |
|---|
Connections
| Connection Type | National Pipe Thread (NPT), Flange |
|---|---|
| Connection Size | 1/2 in |
Dimensions & Weight
| Weight | 3.3 lb |
|---|
Overview
SZ Series - Stabilized & Non-Stabilized Connectors
- Slotted bolt holes allow for 2-1/8" and 2-1/4" bolt spacings
- Designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections
- Optional dielectric barrier creates a non-conductive shield between the instrument and the orifice fitting
