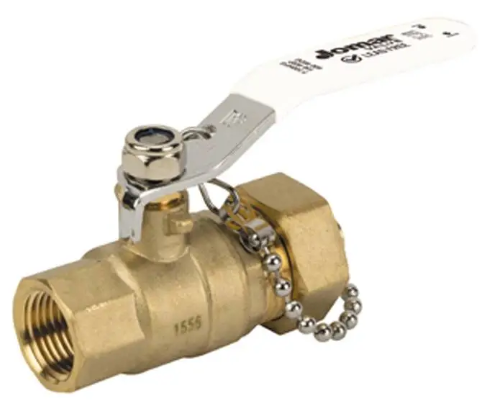

1/2" x 3/4" Hose Jomar Valve T-100HFG, 2 Piece, Full Port, Dezincification Resistant Lead Free Brass, FNPT x 3/4" Hose Connection, Cap & Chain, Stainless Steel Ball & Stem, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $35.35
Starting At:
$25.99
(You save
$9.36
)
- Size Dropdown:
- True
1/2" x 3/4" Hose Jomar Valve T-100HFG 2 Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Gland Follower and Single O-Ring Stem Design
- Cap and Chain for Easy Drain and Hose Connection
- Heavy Steel Chain
- Blow-Out Proof Stem
- 100% Leak Tested
- IAPMO Certified - NSF 61 & NSF 372
- Wetted Surfaces Contain Less than .25% Content
Certifications/Approvals
- IAPMO Certified
- NSF 61-8
- NSF 372
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
- ANSI B1.20.1
- ANSI B1.20.7
Technical Specifications
Item
Ball Valve
Size
1/2" x 3/4" Hose
Port
Full Port
Design Type
2-Piece
End Connection
FNPT x 3/4" Hose Connection
Body Material
Lead Free Brass - C46500
Ball Material
304 Stainless Steel
Handle Type
Lever
Seat Material
PTFE
Stem Material
304 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
600 psi WOG, 150 psi steam
Max Temp
500°F
