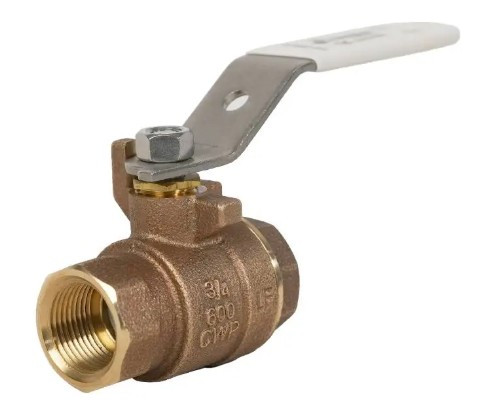

1/4" Jomar Valve T-200CSSG, 2 Piece, Full Port, Threaded, Lead Free Bronze, Stainless Steel Ball & Stem, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $38.15
Starting At:
$27.99
(You save
$10.16
)
- Size Dropdown:
- True
1/4" Jomar Valve T-200CSSG 2-Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Lead Free Bronze
- Blow-Out Proof Stem
- Heavy Commercial Pattern
- 100% Leak Tested
- IAPMO Certified: NSF 61 & NSF 372 & NSF 14
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
- Accessories Available
Certifications/Approvals
- NSF/ANSI/CAN 61-8 2018
- NSF/ANSI 372-2016
- IAPMO/ANSI Z1157-2014
- ASME A112.4.14/CSA B125.14:22
- NSF/ANSI 14-2016
- Threads According to ANSI B1.20.1
- Meets MSS SP-110
Technical Specifications
Item
Ball Valve
Size
1/4"
Port
Ful Port
Design Type
2-Piece
End Connection
Threaded
Body Material
Lead Free Bronze - C89836
Ball Material
316 Stainless Steel
Handle Type
Lever
Seat Material
PTFE
Stem Material
316 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
600 psi CWP (ambient temperature)
Max Temp
300°F
