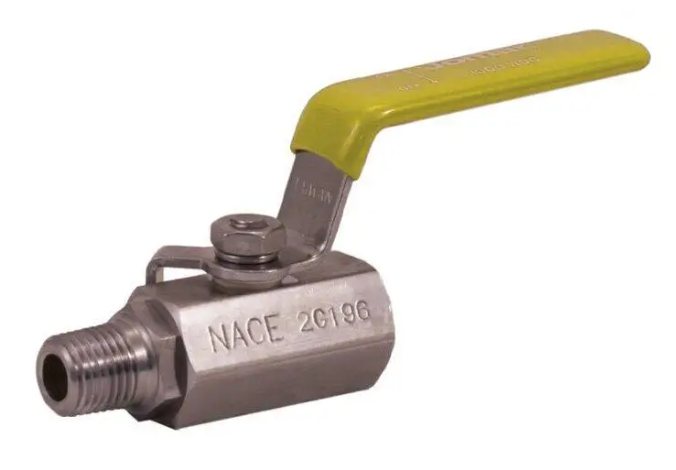

1/4" FIP x 1/4" MIP Jomar Valve T-SS-1000, 1 Piece / 2 Piece, Full Port, Mini Ball Valve, Stainless Steel, FNPT x MNPT Connection, Stainless Steel Ball & Stem, 1000 WOG Ball Valve

Name: 1/4" FIP x 1/4" MIP Jomar Valve T-SS-1000, 1 Piece / 2 Piece, Full Port, Mini Ball Valve, Stainless Steel, FNPT x MNPT Connection, Stainless Steel Ball & Stem, 1000 WOG Ball Valve
Brand: Jomar Valve
SKU: 500-099

SKU: 500-099

$79.99 Was: $111.18 You Save $31.19

Available to Order

Available Sizes

1/8" x 1/8" 1/4" x 1/4" 1/4" x 1/4"

Size1/4" FIP x 1/4" MIP

Max Pressure1000 psi WOG, 150 psi steam

Body MaterialCF8M Stainless Steel/ 316 Stainless Steel

End ConnectionFNPT x MNPT

PortFull Port

Typically ships in 1–2 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Ball Valve
Size	1/4" FIP x 1/4" MIP
Design Type	3-Piece, 4 Bolt Swing out Body
Brand	Jomar Valve
Manufacturer Part #	500-099

Materials & Construction

Body Material	CF8M Stainless Steel/ 316 Stainless Steel
Ball Material	316 Stainless Steel
Handle Type	Lever
Seat Material	PTFE
Stem Material	316 Stainless Steel

Performance

Max Pressure	1000 psi WOG, 150 psi steam

Connections

Port	Full Port
End Connection	FNPT x MNPT
