Red-White Valve Authorized Distributor

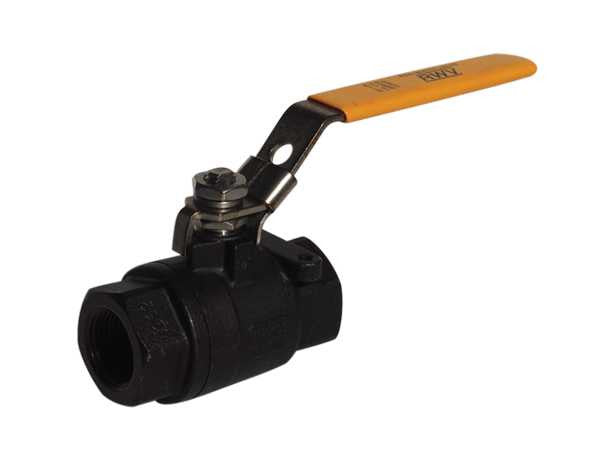

1/4" Red White Valve 7770 - Carbon Steel, Ball Valve

SKU: 6-70779-77702-3
$27.99 Was: $55.48 You Save $27.49
Available to Order
Available Sizes
1/4" 3/8" 1/2" 3/4" 1" 1-1/4"
Size Range1/4"
Pressure Rating2000# WOG / 100# WSP
Body MaterialCarbon Steel
End ConnectionThreaded (FNPT X FNPT)
Temperature Rating360°F MAX Temp
PortRegular
Ships direct from the manufacturer — call 888-825-8800 for current lead time
Download Specification Sheet (PDF)
Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
30-Day Returns · see policy
Expert Support: 888-825-8800

Technical Specifications

General

ItemBall Valve
Size Range1/4"
Body Type2 Piece
Conforms ToMSS-SP-110
BrandRed-White Valve
Manufacturer Part #6-70779-77702-3
Size1/4"

Materials & Construction

Body MaterialCarbon Steel
StemStainless Steel (Blow-Out Proof)
SeatsReinforced PTFE

Performance

Pressure Rating2000# WOG / 100# WSP
Temperature Rating360°F MAX Temp

Connections

End ConnectionThreaded (FNPT X FNPT)
PortRegular
Download Specification Sheet (PDF)
