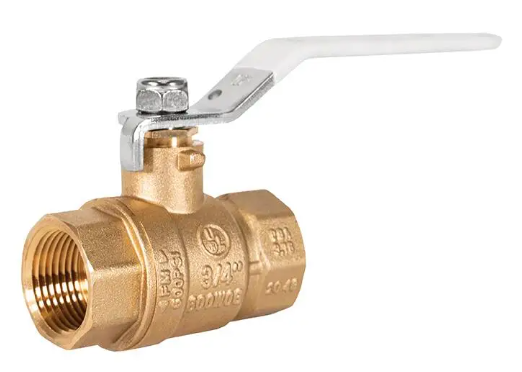

1" Jomar Valve JF-100TG, 2 Piece, Full Port, Dezincification Resistant Lead Free Brass, NPT Threaded, Stainless Steel Ball & Stem, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $51.74
Starting At:
$36.99
(You save
$14.75
)
- Size Dropdown:
- True
1" Jomar Valve JF-100TG 2-Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- 100% Leak Tested
- IAPMO Certified - NSF 61 & NSF 372 Certified
- Wetted Surfaces Contain Less than .25% Content
Certifications/Approvals
- UL Listed up to 600 PSIG (1/4" - 1")
- 300 PSIG (1-1/4" - 2"), 250 PSIG (2-1/2" - 4")
- MHKZ - Manual valves
- YRPV - Gas shut-off valves
- YQNZ - Compressed gas shutoff valves
- YRBX - Flammable liquid shutoff valves
- YSDT - LP gas shutoff valves
- IAPMO Certified (1/4" - 4")
- NSF/ANSI/CAN 61-8 2018
- NSF/ANSI 372-2016
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
- CSA Certified
- CGA 3.16 (125 PSIG) (1/4" - 2")
- ANSI Z21.15 (.5 PSIG) (1/4" - 2")
- CGA CR91 (5 PSIG) (1/4" - 2")
- ASME B16.44 (5 PSIG) (1/4" - 2")
- ASME B16.33 (125 PSIG) (1/2" - 2")
- MSS SP-110
- ANSI B1.20.1
Technical Specifications
Item
Ball Valve
Size
1"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
Lead Free Brass - C46500
Ball Material
304 Stainless Steel
Handle Type
Lever
Seat Material
PTFE
Stem Material
304 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
600 psi WOG, 150 psi steam
Max Temp
-40°F to 500°F
