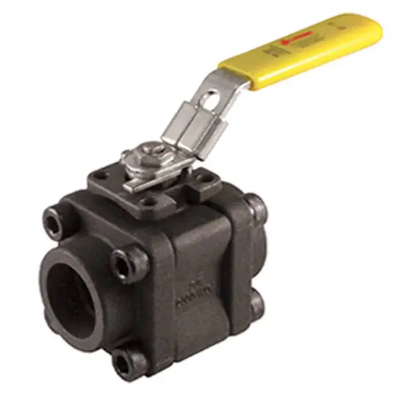

1" Jomar Valve S-CS-2001N-SS-4B, 3 Piece, 4 Bolt Enclosed, Standard Port, Carbon Steel, Socket Weld, Stainless Steel Ball & Stem, 2000 WOG Ball Valve
Brand : Jomar Valve
MSRP: $192.16
$137.99
(You save
$54.17
)
- SKU:
- 601-635
- Size:
- 1"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
1" Jomar Valve S-CS-2001N-SS-4B 3 Piece Ball Valve Technical Specs
Features
- Solid Ball Construction
- Latch Lock Handle May be Locked in Open or Closed Position
- Blow-Out Proof Stem
- 100% Leak Tested
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
- Repair Kits Available
Certifications/Approvals
- UL Listed
- MHKZ Manual Valves
- YQNZ Compressed Gas Shut-Off Valves
- YRBX Flammable Liquid Shut-Off Valves
- YRPV Gas Shut-Off Valves
- YSDT LP Gas Shut-Off Valves
- YQAR Anhydrous Ammonia Shut-Off Valves
- Conforms to API 598
- MSS SP-110, SP-61, SP-82
- NACE Certified
- ASME B16.34 (1/2" - 1-1/4")
- ANSI B16.11
- Buy American Act Compliant
Technical Specifications
Item
Ball Valve
Size
1"
Port
Standard Port
Design Type
3-Piece, 4 Bolt Enclosed
End Connection
Socket Weld
Body Material
WCB Carbon Steel
Ball Material
CF8M Stainless Steel
Handle Type
Latch Lock Handle
Seat Material
Hostaflon TFM 1600
Stem Material
316 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
2000 psi WOG, 150 psi steam
