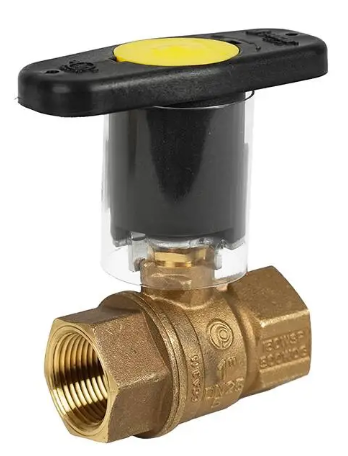

1" Jomar Valve T-100CG-IH, 2 Piece, Full Port, NPT Threaded, Dezincification Resistant Brass, Thermal-Block Insulated Handle, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $101.00
Starting At:
$72.99
(You save
$28.01
)
- Size Dropdown:
- True
Country of Origin: Made in Italy
3/4" Jomar Valve T-100CG-IH 2-Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Triple Sealing Stem with 2 FKM O-rings and PTFE G300 Seal
- Blow-out Proof Stem
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- NSF/ANSI/CAN 61-G
- UL-2043 Certified Insulated Handle
- ANSI Z21.15 (.5 PSIG
- ASME B16.44 (5 PSIG)
- CGA CR91 (5 PSIG)
- Threads according to ANSI B1.20.1
- Meets MSS SP-110
- Meets IS0 6509
Technical Specifications
Item
Ball Valve
Size
3/4"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
Lead Free Brass - C27453
Ball Material
C28500 Brass (T.E.A. Coated)
Handle Type
Thermal-Block Insulated Locking Handle
Seat Material
PTFE
Stem Material
Lead-Free Brass
Stem Design
Blowout Proof
Max Pressure
600 psi, 150 psi Steam
Max Temp
366°F
