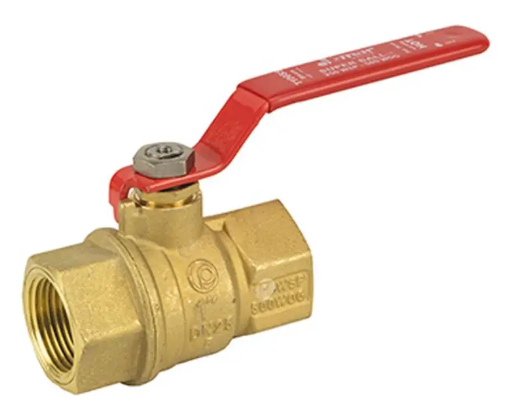

1" Jomar Valve T-100SSS, 2 Piece, Full Port, Brass, NPT Threaded, Steam Trim, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $135.87
$97.99
(You save
$37.88
)
- SKU:
- 100-535
- Size:
- 1"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
Country of Origin: Made in Italy
1" Jomar Valve T-100SSS 2 Piece Ball Valve Technical Specs
Features
- Triple Sealing Stem with 2 FKM O-Rings and Graphite Seal
- 250 WSP Rating
- Patent Pending Design
- Special High Temperature Resistant Handle
- Blow-Out Proof Stem
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
- 29 in-Hg Vacuum Rating
- Accessories Available
Certifications/Approvals
- MSS SP-110
- ANSI B1.20.1
Technical Specifications
Item
Ball Valve
Size
1"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
Brass C37700
Ball Material
316 Stainless Steel
Handle Type
Special High Temperature Resistant Handle
Seat Material
PTFE Carbon Graphite
Stem Material
316 Stainless Steel
Stem Design
Leak-Proof, Blowout-Proof Stem
Max Pressure
500 psi WOG, 150 psi steam
