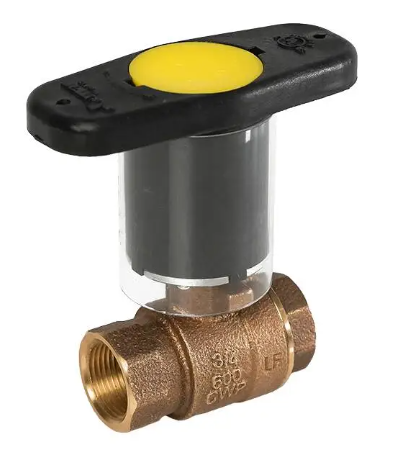

1" Jomar Valve T-200CSSG-IH, 2 Piece, Full Port, NPT Threaded, Lead-Free Bronze, Stainless Steel Ball & Stem, Thermal-Block Insulated Handle, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $150.28
$108.99
(You save
$41.29
)
- SKU:
- 200-405SSG-IH
- Size:
- 1"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
1" Jomar Valve T-200CSSG-IH 2-Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Lead-Free Bronze
- Blow-Out Proof Stem
- Heavy Commercial Pattern
- 100% Leak Tested
- IAPMO Certified: NSF 61 & NSF 372 & NSF 14
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- NSF/ANSI/CAN 61-8 2018
- NSF/ANSI 372-2016
- IAPMO/ANSI Z1157-2014
- ASME A112.4.14/CSA B125.14:22
- NSF/ANSI 14-2016
- ASME/ANSI B16.18
- Meets MSS SP-110
Technical Specifications
Item
Ball Valve
Size
1"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
Lead-Free Bronze - C89836
Ball Material
316 Stainless Steel
Handle Type
Thermal-Block Insulated Locking Handle
Seat Material
PTFE
Stem Material
316 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
600 psi, 150 psi steam
Max Temp
300°F
