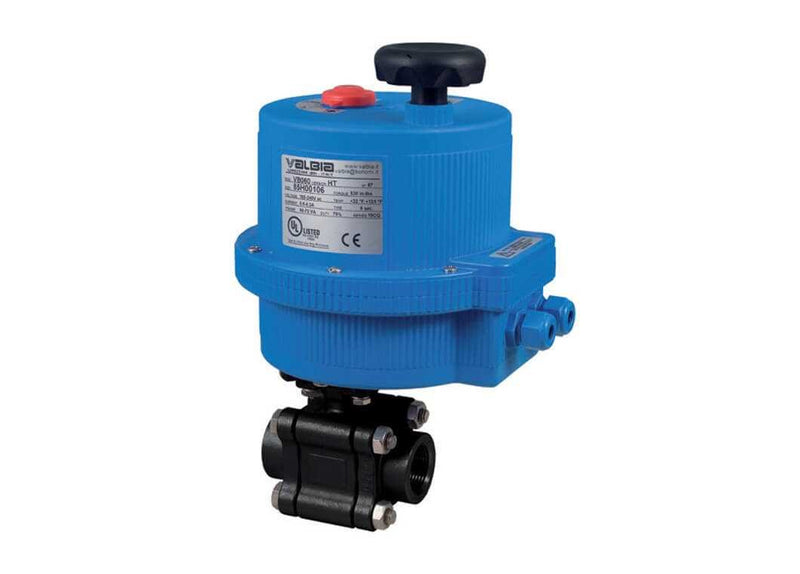

1" Bonomi 8E0632-00 - Ball Valve, Fire Safe, 2-way, 3-piece, Carbon Steel, Butt Weld, Full Port, with Electric Actuator
SKU:
8E0632-002-1
$632.99
Price on request
Was: $745.00
You Save $112.01
Available to Order
Select Voltage: 24V AC/DC
Size1"
Pressure Rating2200 psi
Body MaterialCarbon Steel (WCB)
Connection TypeButt Weld
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve |
|---|---|
| Size | 1" |
| Design Type | 3-Piece |
| Available Actuator Voltage | 12V -AC/DC |
| Fail Position | None (Fail in Place) |
| Fire Safe | API 607 |
| Duty Cycle | 50% Duty Cycle (12/24V AC) |
| Brand | Bonomi Valves |
| Manufacturer Part # | 8E0632-002-1 |
Materials & Construction
| Body Material | Carbon Steel (WCB) |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | TFM-4215 |
| Stem Design | Grounded Ball and Stem |
| Stem Material | 316 Stainless Steel |
| Packing Material | TFM |
Performance
| Pressure Rating | 2200 psi |
|---|---|
| Pressure Class | Class 900 |
| Working Steam Pressure | 250 psi |
| Temp Rating | -50°F to 550°F |
| NEMA Rating | NEMA 4/4X |
Connections
| Port | Full Port |
|---|---|
| Connection Type | Butt Weld |
Standards & Certifications
See Specification Sheet
