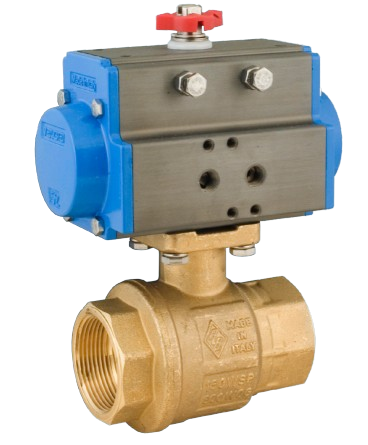

1" Bonomi 8P0136LF Ball Valve, 253N LF Direct Mount, 2-Way, Lead-Free Brass, NPT, Full Port with Spring Return Actuator

Name: 1" Bonomi 8P0136LF Ball Valve, 253N LF Direct Mount, 2-Way, Lead-Free Brass, NPT, Full Port with Spring Return Actuator
Brand: Bonomi Valves
SKU: 8P0136LF-1

SKU: 8P0136LF-1

Made in Italy

$348.99 Was: $411.00 You Save $62.01

Available to Order

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Size Range1"

Pressure Rating600 psi WOG

Body MaterialLead-Free Brass

End ConnectionNPT Threaded

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Pneumatically Actuated Ball Valve
Size Range	1"
Actuation Type	Spring Return (SR) Pneumatic
Brand	Bonomi Valves
Manufacturer Part #	8P0136LF-1
Size	1"
Country of Origin	Made in Italy

Materials & Construction

Body Material	Lead-Free Brass
Ball Material	Stainless Steel
Seat Material	PTFE
Stem Material	Stainless Steel

Performance

Pressure Rating	600 psi WOG
Temp. Rating	-4>
Actuator Supply Pressure	Min. 80 psi and Max. 116 psi

Connections

Port	Full Port
End Connection	NPT Threaded

Standards & Certifications

See Specification Sheet
