Save 15%

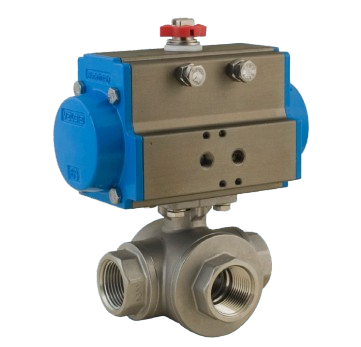

1" Bonomi 8P0146 - 3-Way, Stainlesss Steel, L-Port, Ball Valve with SR Actuator
SKU:
8P0146-1
$596.99
Price on request
Was: $703.00
You Save $106.01
Available to Order
Size1"
Max. Pressure1000psi (1/4"-1"), 800psi (1-1/4" - 2")
Body MaterialStainless Steel (CF8M)
Connection TypeThreaded (FNPT x FNPT X FNPT)
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 3-Way Ball Valve (L port) |
|---|---|
| Size | 1" |
| Temp Range | -4F to 450F |
| Actuation | Spring Return (SR) Pneumatic |
| Brand | Bonomi Valves |
| Manufacturer Part # | 8P0146-1 |
Materials & Construction
| Body Material | Stainless Steel (CF8M) |
|---|---|
| Body Style | 3-Way |
| Seat Material | RTFE |
| Ball Material | 316 Stainless Steel |
| Stem Type | Blowout Proof |
| Stem Material | 316 Stainless Steel |
Performance
| Max. Pressure | 1000psi (1/4"-1"), 800psi (1-1/4" - 2") |
|---|---|
| Actuator Supply Pressure | 80 PSI of available air pressure |
Connections
| Connection Type | Threaded (FNPT x FNPT X FNPT) |
|---|
