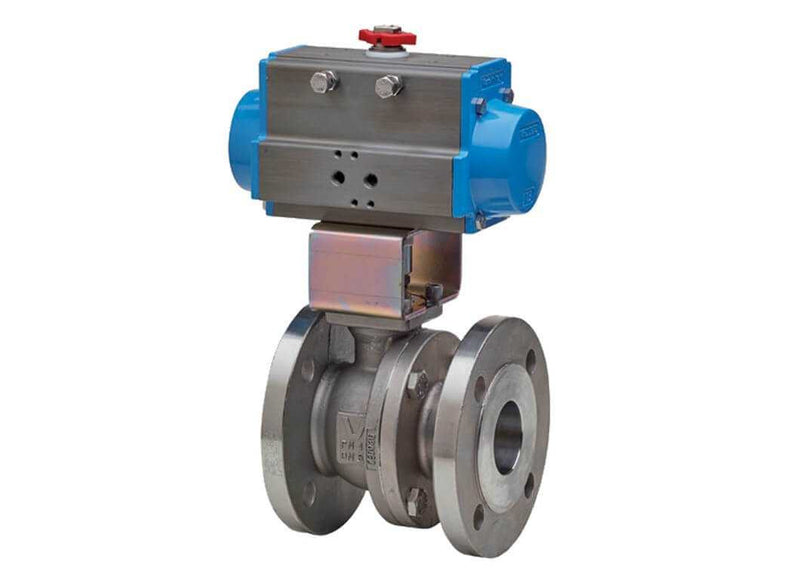

1" Bonomi 8P760021 - 2-Way, Stainless Steel, Full Port, Flanged, Ball Valve with Double Acting Actuator

Name: 1" Bonomi 8P760021 - 2-Way, Stainless Steel, Full Port, Flanged, Ball Valve with Double Acting Actuator
Brand: Bonomi Valves
SKU: 8P760021-1

SKU: 8P760021-1

$762.99 Was: $899.00 You Save $136.01

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/2" 2" 3" 4" 6" 8"

Size1"

Pressure Rating200 psi (Refer to P/T Chart)

Body Material316 Stainless Steel

End Connection150# Flanged

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Pneumatically Actuated Ball Valve
Design Type	Split Body
Air Supply Needed	80 PSI
Actuation Type	Double Acting (Fail in Place)
Brand	Bonomi Valves
Manufacturer Part #	8P760021-1
Size	1"

Materials & Construction

Body Material	316 Stainless Steel
Ball Material	316 Stainless Steel
Seat Material	R.P.T.F.E.
Packing Material	N/A
Stem Design	Blowout Proof

Performance

Pressure Rating	200 psi (Refer to P/T Chart)
Temp. Rating	-4°F to 450°F (Refer to P/T Chart)

Connections

Port	Full Port
End Connection	150# Flanged

Standards & Certifications

See Specification Sheet
