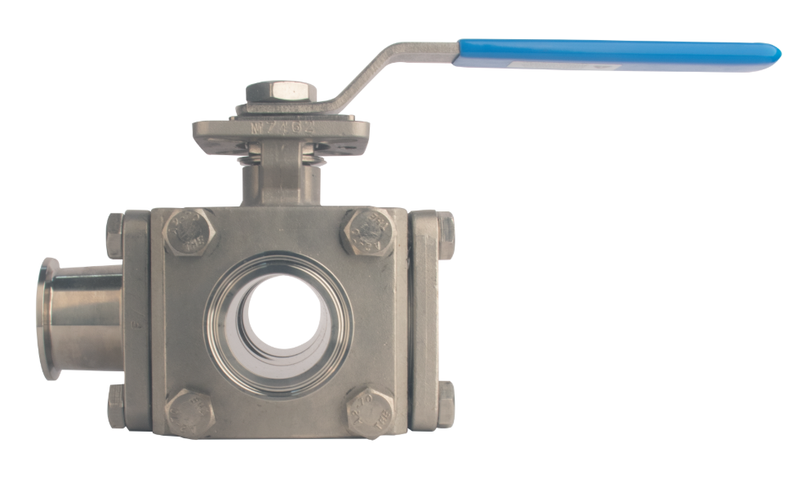

1" Bonomi 97T-STC Ball Valve, 3-Way, T-Port, Direct Mount, Stainless Steel, Sanitary Tri-Clamp Ends, Cavity Filled

Name: 1" Bonomi 97T-STC Ball Valve, 3-Way, T-Port, Direct Mount, Stainless Steel, Sanitary Tri-Clamp Ends, Cavity Filled
Brand: Bonomi Valves
SKU: 97T-STC-1

SKU: 97T-STC-1

$1,061.99 Was: $1,251.00 You Save $189.01

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/2" 2" 2-1/2" 3" 4"

Size1"

Pressure Rating1000 psi

Body MaterialCF3M Stainless Steel

Connection TypeSanitary Tri-Clamp Ends

PortFull Port

Typically ships in 5–7 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	3-Way Ball Valve (T-Port)
Size	1"
Design Type	Cavity Filled
Brand	Bonomi Valves
Manufacturer Part #	97T-STC-1

Materials & Construction

Body Material	CF3M Stainless Steel
Ball Material	AISI 316L Stainless Steel
Seat Material	RTFE
Stem Material	AISI 316L Stainless Steel
Stem Design	Live-loaded stem packing

Performance

Pressure Rating	1000 psi
Temp. Rating	-20>

Connections

Port	Full Port
Connection Type	Sanitary Tri-Clamp Ends

Standards & Certifications

ISO 5211
