Save 15%

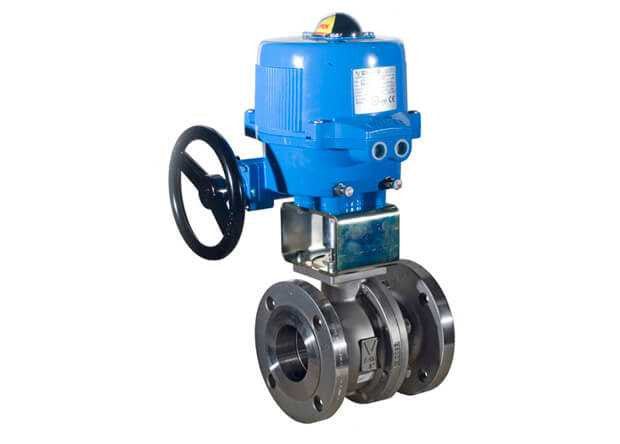

1" Bonomi M8E079-00 - Stainless Steel, Full Port, Flanged, Ball Valve with Position Indicator and on/off Electric Actuator
SKU:
M8E079-002-1
$1,086.99
Price on request
Was: $1,280.00
You Save $193.01
Available to Order
Select Voltage: 24V AC/DC
Size1"
Pressure Rating275 PSIG
Body MaterialStainless Steel
End Connection150# Flanged
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve |
|---|---|
| Design Type | Split Body |
| Control | On/Off |
| Available Voltages | 100-240V - AC, 24V - AC/DC, 12V - AC/DC |
| Actuation Type | Electric |
| Brand | Bonomi Valves |
| Manufacturer Part # | M8E079-002-1 |
| Size | 1" |
Materials & Construction
| Body Material | Stainless Steel |
|---|---|
| Ball Material | Stainless Steel |
| Seat Material | P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 275 PSIG |
|---|---|
| Temp. Rating | -4F to 366F |
| NEMA Rating | NEMA 4/4x |
Connections
| Port | Full Port |
|---|---|
| End Connection | 150# Flanged |
Standards & Certifications
See Specification Sheet
