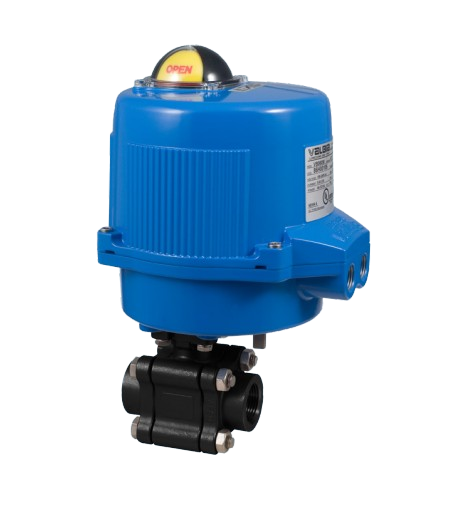

1" Bonomi M8E630LLV*-0**-1 30°/ 60°/ 90° V-Port Ball Valve, 3 Piece, Direct Mount, 2-Way, Carbon Steel, NPT Threaded, with Electric Actuator
SKU:
M8E630LLV3-022-1
$1,445.99
Price on request
Was: $1,703.00
You Save $257.01
Available to Order
Select V-Ball:: 30° V-Ball
Select Voltage/Positioner/Battery Backup: 24V AC/DC with Positioner
Size1"
Max. Pressure2200 psi, 250 psi steam
Body MaterialCarbon Steel
Connection TypeNPT Threaded
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Ball Valve (V-Port) |
|---|---|
| Size | 1" |
| Ball Options | 30>< , 60>< , 90>< |
| Max. Process Temp. | 150> |
| Available Actuator Package | 12V AC/DC |
| Duty Cycle | 75% Duty Cycle |
| Brand | Bonomi Valves |
| Manufacturer Part # | M8E630LLV3-022-1 |
Materials & Construction
| Body Material | Carbon Steel |
|---|---|
| Body Style | 3-Piece |
| Seat Material | TF-4215 |
| Ball Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
Performance
| Max. Pressure | 2200 psi, 250 psi steam |
|---|---|
| NEMA Rating | NEMA 4 |
Connections
| Connection Type | NPT Threaded |
|---|
