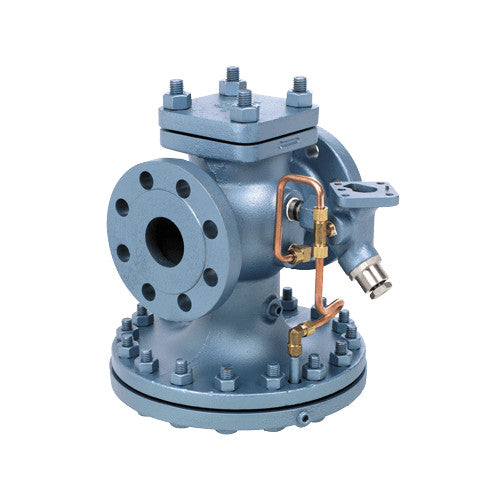

1" Watson McDaniel HD-14-F300 Pilot-Operated Regulating Valves (Standard HD Main Valve), Ductile Iron Body, Inlet Pressure 15 - 300 PSIG, Full Port, 300# Flange
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800Technical Specifications
General
| Main Valve | HD-Series |
|---|---|
| Size | 1" |
| Part Number | HD-12-F300 |
| Brand | Watson McDaniel |
| Manufacturer Part # | HD-14-F300 |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Material | Ductile Iron |
|---|
Performance
| PMO Max. Operating Pressure | Inlet Pressure 15 - 300 PSIG |
|---|---|
| Design Pressure/Temperature Ratings TMA/PMA | 300# FLG 450 PSIG @ 650° F |
Connections
| Connections | 300# FLG |
|---|
Overview
Watson McDaniel HD-12-F300 Pilot-Operated Regulators, Inlet Pressure 15 - 300 PSIG (1" 300# Flange)
Features:
- No external power source is required.
- Pressure & temperature pilots can be used in combination, eliminating the need for a separate pressure and temperature regulator.
- Ductile iron body for higher pressure ranges and increased safety when compared to cast iron.
- Full port strainer and blowdown valve oF300 Pilot adapter for ultimate protection against dirt and scale.
- Hardened stainless steel trim (55 Rc) for extended life even in the most demanding applications.
- The innovative design allows the pilot to be mounted on either side of the regulator and is easily field-reversible without having to rebend tubing.
- Tubing and pilot adapter is pre-mounted on main valve. The control pilot requires only four bolts to complete the installation.
Options & Features (See Specification Sheet For Full List):
HD-Series Pilot-Operated Regulators (Standard HD Main Valve)
The HD-Series Pilot-Operated Regulators is for pressure reduction or temperature control in steam service applications. These valves require the use of a pressure or temperature pilot which attaches to the main valve to perform the desired function. Back pressure and differential pressure pilots are also available. When both a pressure and temperature pilot are used together an additional pilot adapter is required.
The HD Series Pilot-Operated Regulating Valve was designed for extremely accurate control of temperature and pressure in steam service applications. The HD-Series is made of Ductile Iron for extended pressure and temperature ratings. These regulators use several different control pilots which are mounted to the valve to control pressure, temperature or a combination of both. When two or more pilots are used at the same time - for example, both a pressure and a temperature pilot - an additional pilot adapter for the second pilot is required (must indicate when ordering).
The HD Series Pilot-Operated Regulating Valve was designed for extremely accurate control of temperature and pressure in steam service applications. The HD-Series is made of Ductile Iron for extended pressure and temperature ratings when compared to cast iron. Several different control pilots can be mounted to the valve to control pressure, temperature, or a combination of both. When two or more pilots are used together (both a pressure and a temperature pilot) an additional pilot adapter for the second pilot is required (must indicate when ordering). The most commoF300 Pilots are the PP-Pilot for pressure reducing, and the PT-Pilot for temperature control.
The Standard Main Valve is used for an inlet steam pressure range of 15-300 PSI. The Low-pressure Main Valve contains a different main valve spring and is available for an inlet pressure range of 5 - 20 PSI. The Main Valve and Pilot are purchased separately.
Options
- HDR- Reduced Port Valves.
- SSD - Stainless Steel Diaphragm
- SSXT - Stainless Steel External Tubing.
- BADAPTER - Required when 2 or more pilots are sued on the same valve (Not Required For Solenoid Pilot).
