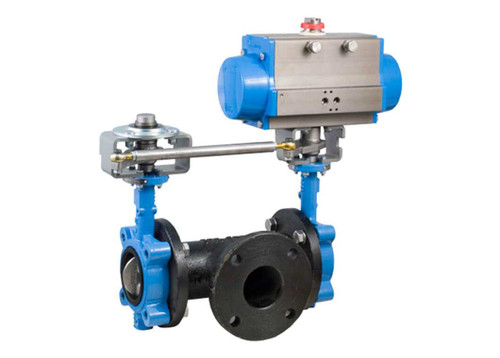

10" Bonomi DAN501S-T*-00- Butterfly Valve, 3-Way, T Assembly, Lug Style, Ductile Iron Body, CF8M Stainless Steel Disc, EPDM Seat, with Double Acting Pneumatic Actuator

Brand :

MSRP: $5,335.00
Starting At: $4,649.99
(You save $685.01 )
Size Dropdown:
True
10" Bonomi DAN501S-T*-00- Butterfly Valve, 3-Way, T Assembly, Lug Style, Ductile Iron Body, CF8M Stainless Steel Disc, EPDM Seat, with Double Acting Pneumatic Actuator
View Details

Bonomi DAN501S-T*-00 Series - Technical Specification

Item
Pneumatically Actuated Butterfly Valve T Assembly
Body Style
Lug
Body Material
Ductile Iron
Disc Material
CF8M Stainless Steel
Seat Material
EPDM
Packing Material
EPDM
Temp. Rating
-4°F to +250°F
Pressure Class
ANSI 150
Air Supply Needed
80 PSI
Pressure Rating
250 PSI
Actuation Type
Double Acting(Fail in Place)
Approvals
See Specification Sheet




Size Dropdown:
True
