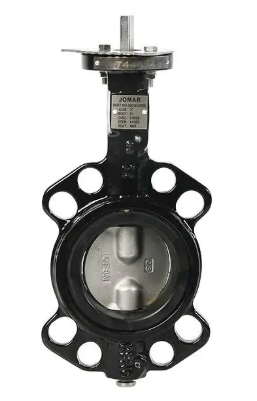

12" Jomar Valve BFV-Wafer BUNA-N, Wafer Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc, BUNA Seat, Gear Operator Butterfly Valve

Name: 12" Jomar Valve BFV-Wafer BUNA-N, Wafer Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc, BUNA Seat, Gear Operator Butterfly Valve
Brand: Jomar Valve
SKU: 900-12DSBG

SKU: 900-12DSBG

$1,852.99 Was: $2,593.85 You Save $740.86

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24" 30" 36"

Size12"

Pressure Rating225 psi

Body MaterialDuctile Iron - Epoxy Coated

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valve
Size	12"
Body Type	Wafer Style
Temp. Range	10°F to 180°F
Brand	Jomar Valve
Manufacturer Part #	900-12DSBG

Materials & Construction

Body Material	Ductile Iron - Epoxy Coated
Seat Material	BUNA
Handle Type	Gear Operator
Disc Material	CF8M Stainless Steel

Performance

Pressure Rating	225 psi
