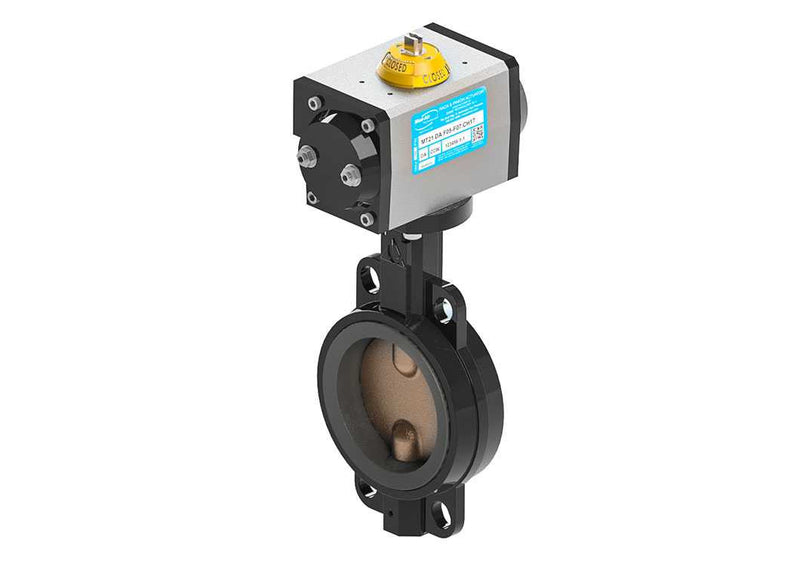

12" Max-Air 120-050-262-D8240-MA - Wafer Style Butterfly Valve, Automated, Epoxy Coated Ductile Iron Body, Ductile Iron Nickel Plated Disc, EPDM Seat

Name: 12" Max-Air 120-050-262-D8240-MA - Wafer Style Butterfly Valve, Automated, Epoxy Coated Ductile Iron Body, Ductile Iron Nickel Plated Disc, EPDM Seat
Brand: Max-Air
SKU: 120-050-262-D8240-MA

SKU: 120-050-262-D8240-MA

$1,642.99 Was: $2,167.75 You Save $524.76

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"

Size12"

Pressure Rating200 PSI

Body MaterialEpoxy Coated Ductile Iron

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download CAD Drawing (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valve
Operation	Automated
Brand	Max-Air
Manufacturer Part #	120-050-262-D8240-MA
Size	12"

Materials & Construction

Body Style	Wafer
Body Material	Epoxy Coated Ductile Iron
Disc Material	Ductile Iron Nickel Plated
Seat Material	EPDM

Performance

Pressure Rating	200 PSI
Temp. Rating	-40°F to +275°F
Pressure Class	Class 150

Standards & Certifications

NSF372
