12" NOSHOK 50/75/100 Series Temperature Thermowells, 50-120-316-SS, 1/2" NPT Stepped Shank, 1/2" NPSM Instrument Connection, 316 Stainless Steel
SKU:
50-120-316-SS
Made in the United States
$177.99
Price on request
Was: $284.46
You Save $106.47
Available
Available Models
Process Connection Size1/2 in
Pressure Ratings at 70 Degree Fahrenheit (°F)7,000 psi
Process Connection TypeNational Pipe Thread (NPT)
Ships direct from the manufacturer — call 888-825-8800 for current lead time
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Thermowell |
|---|---|
| Style | Stepped Shank |
| Bore Size | 0.260 in |
| Shank Diameter [Max] | 0.750 in |
| Insertion Diameter B [Max] | 3/4 in |
| Warranty | 1 yr |
| Stock | Yes |
| Brand | NOSHOK |
| Manufacturer Part # | 50-120-316-SS |
| Size | 12" |
| Country of Origin | Made in the United States |
Materials & Construction
| Stem Length | 12 in |
|---|---|
| Material | 304 Stainless Steel |
Performance
| Pressure Ratings at 70 Degree Fahrenheit (°F) | 7,000 psi |
|---|
Connections
| Process Connection Size | 1/2 in |
|---|---|
| Process Connection Type | National Pipe Thread (NPT) |
| Instrument Connection Size | 1/2 in |
| Instrument Connection Type | National Pipe Straight Mechanical (NPSM) |
Overview

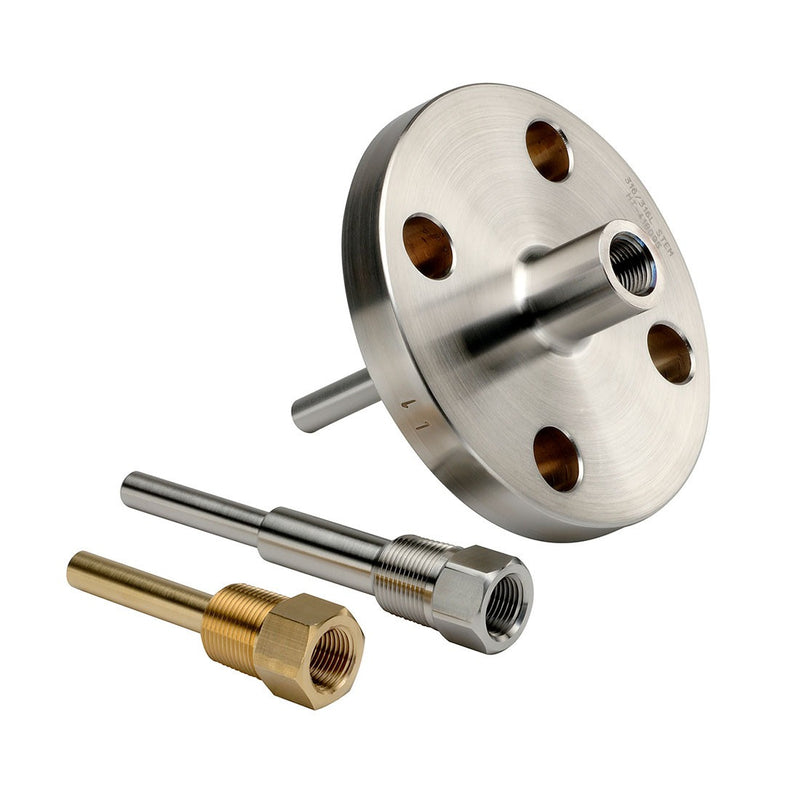

50/75/100 Series - Thermowells
- Allows a temperature instrument to be removed and replaced without shutting down and draining the process
- Reduces the possibility of damage to the temperature instrument
- Provides protection to the operator
- 1/2" NPSM instrument connection, 3/4" NPT process connection standard - 1/2" NPT, 1" NPT, flanged and sanitary options available
- 150 Class and 300 Class raised face flanged thermowells available
