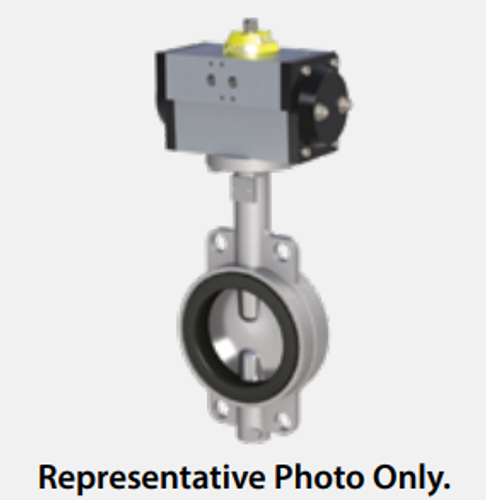

14" Max-Air 140-650-482P-S8230-MA - Wafer Style Butterfly Valves, Spring Return Pneumatic, Stainless Steel Body, Stainless Steel Disc, PTFE/EPDM Seat

Name: 14" Max-Air 140-650-482P-S8230-MA - Wafer Style Butterfly Valves, Spring Return Pneumatic, Stainless Steel Body, Stainless Steel Disc, PTFE/EPDM Seat
Brand: Max-Air
SKU: 40-650-482P-S8230-MA

SKU: 40-650-482P-S8230-MA

$10,463.99 Was: $13,808.05 You Save $3,344.06

Available to Order

Available Sizes

10" 12" 14"

Size14"

Pressure Rating150 PSI

Body MaterialStainless Steel

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download CAD Drawing (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valves
Operation	Spring Return Pneumatic
Brand	Max-Air
Manufacturer Part #	40-650-482P-S8230-MA
Size	14"

Materials & Construction

Body Style	Wafer
Body Material	Stainless Steel
Disc Material	Stainless Steel
Seat Material	PTFE/EPDM

Performance

Pressure Rating	150 PSI
Temp. Rating	-4°F to +250°F
Pressure Class	Class 150

Standards & Certifications

NSF61 Commercial Hot
