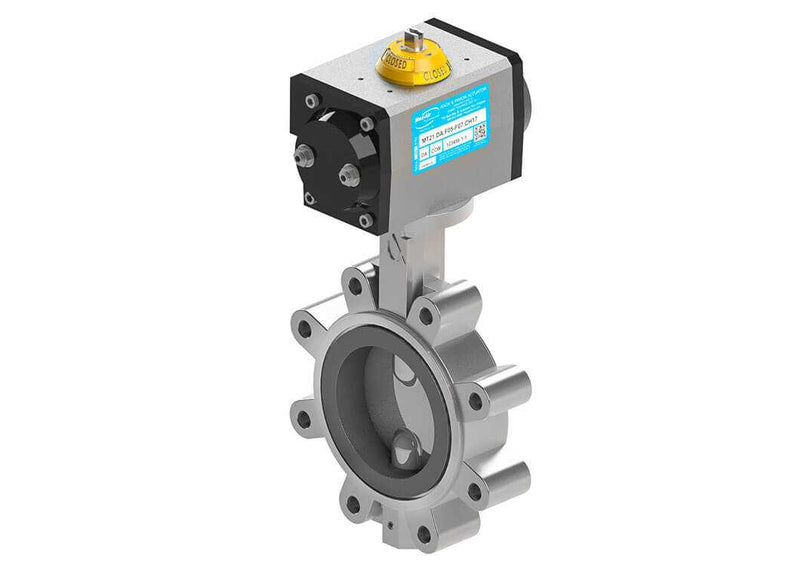

16" Max-Air 160-651-465-D8230-MA - Lug Style Butterfly Valves, Double Acting Pneumatic, Stainless Steel Body, Polished Stainless Steel Disc, BUNA Seat

Name: 16" Max-Air 160-651-465-D8230-MA - Lug Style Butterfly Valves, Double Acting Pneumatic, Stainless Steel Body, Polished Stainless Steel Disc, BUNA Seat
Brand: Max-Air
SKU: 160-651-465-D8230-MA

SKU: 160-651-465-D8230-MA

$9,012.99 Was: $11,893.30 You Save $2,880.31

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"

Size16"

Pressure Rating150 PSI

Body MaterialStainless Steel

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download CAD Drawing (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valves
Operation	Double Acting Pneumatic
Brand	Max-Air
Manufacturer Part #	160-651-465-D8230-MA
Size	16"

Materials & Construction

Body Style	Lug
Body Material	Stainless Steel
Disc Material	Polished Stainless Steel
Seat Material	BUNA

Performance

Pressure Rating	150 PSI
Temp. Rating	+10°F to +180°F
Pressure Class	Class 150

Standards & Certifications

NSF61 Commercial Hot
