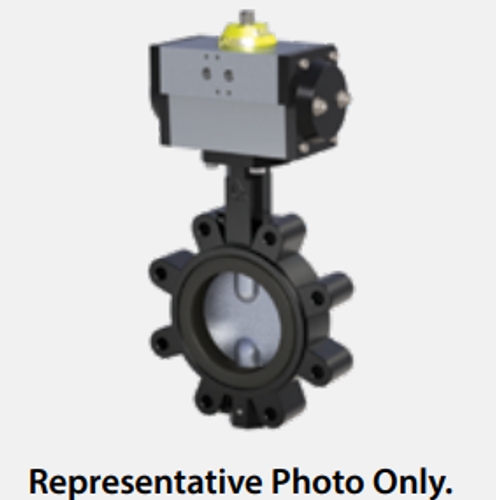

18" Max-Air 180-051-962-S823H-MA - Lug Style Butterfly Valves, Spring Return Pneumatic, Epoxy Coated Ductile Iron Body, Stainless Steel Disc, VITON Seat

Name: 18" Max-Air 180-051-962-S823H-MA - Lug Style Butterfly Valves, Spring Return Pneumatic, Epoxy Coated Ductile Iron Body, Stainless Steel Disc, VITON Seat
Brand: Max-Air
SKU: 180-051-962-S823H-MA

SKU: 180-051-962-S823H-MA

$11,580.99 Was: $15,282.35 You Save $3,701.36

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"

Size18"

Pressure Rating150 PSI

Body MaterialEpoxy Coated Ductile Iron

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download CAD Drawing (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valves
Operation	Spring Return Pneumatic
Brand	Max-Air
Manufacturer Part #	180-051-962-S823H-MA
Size	18"

Materials & Construction

Body Style	Lug
Body Material	Epoxy Coated Ductile Iron
Disc Material	Stainless Steel
Seat Material	VITON

Performance

Pressure Rating	150 PSI
Temp. Rating	+0°F to +392°F
Pressure Class	Class 150

Standards & Certifications

NSF372
