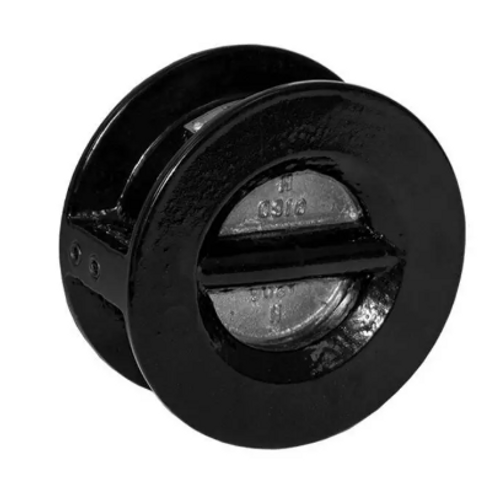

2-1/2" Jomar Valve F-592, Wafer Check Valve, Cast Iron, Flanged, NSF Approved, Class 125
Brand : Jomar Valve
MSRP: $186.02
$133.99
(You save
$52.03
)
- SKU:
- 105-525
- Size:
- 2-1/2"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
2-1/2" Jomar Valve F-592, Wafer Check Valve Technical Specs
Features
- Stainless Steel Disc
- Two Torsion Springs Activate Each Set of Valve Plates
- Quick-Close Action Prevents the Medium Flowing Back
- Easy Installation onto Either Vertical or Horizontal Pipeline
Certifications/Approvals
- NSF/ANSI/CAN 61
- NSF/ANSI/CAN 372
- Complies with API 594 Standard
- ASME B16.1
Technical Specifications
Item
Wafer Check Valve
Size
2-1/2"
Body Material
Cast Iron
Connection Type
Flange
Disc Material
Stainless Steel
Pressure Class
Class 125
Temp Rating
14°F to 185°F
