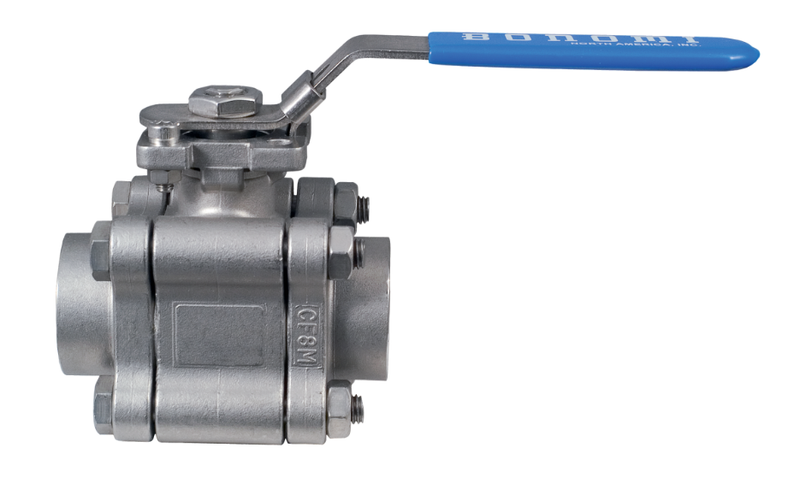

2-1/2" Bonomi 732 LL Ball Valve, High Performance, Direct Mount, Full Port, 3 Piece, Stainless Steel, Butt Weld, with Locking Lever

Name: 2-1/2" Bonomi 732 LL Ball Valve, High Performance, Direct Mount, Full Port, 3 Piece, Stainless Steel, Butt Weld, with Locking Lever
Brand: Bonomi Valves
SKU: 732LL-2-1/2

SKU: 732LL-2-1/2

$1,277.99 Was: $1,505.00 You Save $227.01

Available to Order

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Size2-1/2"

Pressure ClassClass 600

Body MaterialStainless Steel

Connection TypeButt Weld

PortFull Port

Typically ships in 5–7 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	High Performance Ball Valve
Size	2-1/2"
Design Type	3-Piece
Fire Safe	Fire Safe Design
Brand	Bonomi Valves
Manufacturer Part #	732LL-2-1/2

Materials & Construction

Body Material	Stainless Steel
Ball Material	AISI 316 Stainless Steel
Seat Material	TFM 4215
Stem Material	AISI 316 Stainless Steel
Stem Design	Grounded Ball & Stem
Handle Type	Locking Lever Handle

Performance

Pressure Class	Class 600
Pressure Rating	1440 psi, WSP-250 psi
Working Steam Pressure	250 psi
Temp. Rating	-50>

Connections

Port	Full Port
Connection Type	Butt Weld

Standards & Certifications

See Specification SheetISO 5211
