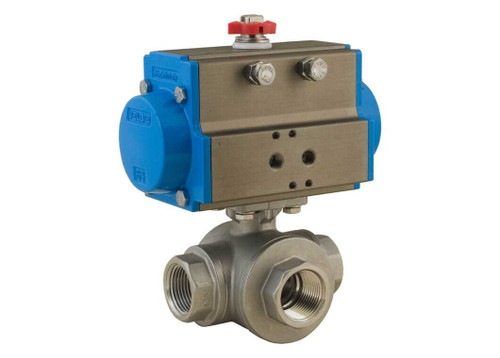

- 2-1/2" Bonomi 8P0139 - 3 way, Stainless Steel, T-Port, Ball Valve with DA Actuator
2-1/2" Bonomi 8P0139 - 3 way, Stainless Steel, T-Port, Ball Valve with DA Actuator
(You save $319.91)
Product Description
2-1/2" Bonomi 8P0139 - Technical Specs
Item
3-Way Ball Valve with Double Acting Actuator
Port Configuration
T-Port (Standard)
Body Material
Stainless Steel (CF8M)
Body Style
3-Way
Connection Type
Threaded (FNPT x FNPT X FNPT)
Size Range
2-1/2"
Max. Pressure
800psi
Seat Material
RTFE
Ball Material
316 Stainless Steel
Temp Range
-4F to 450F
Stem Type
Blowout Proof
Stem Material
316 Stainless Steel
Actuator Action
Double Acting
Sized For
80 PSI of Available Air Pressure
Other Details
Size:
2-1/2"
