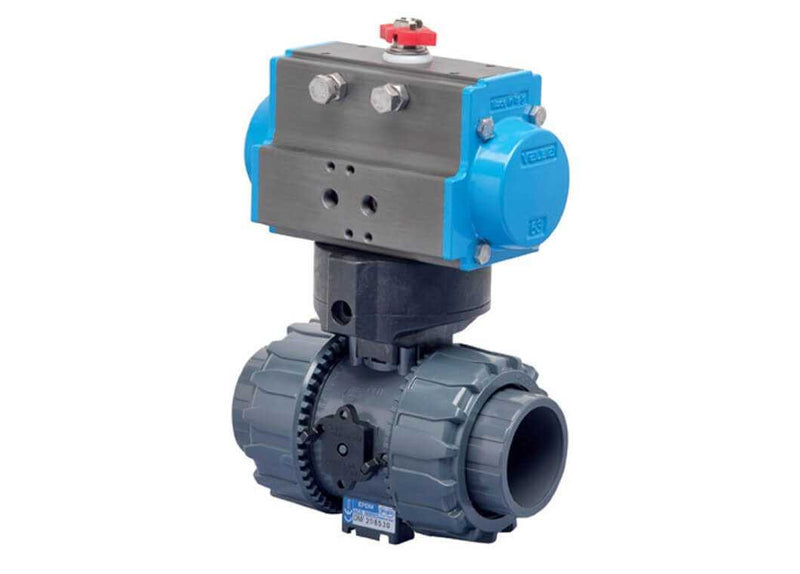

2-1/2" Bonomi 8P2DAPVC - Ball Valve, 2-way, PVC, Full Port, with Double Acting Pneumatic Actuator

Name: 2-1/2" Bonomi 8P2DAPVC - Ball Valve, 2-way, PVC, Full Port, with Double Acting Pneumatic Actuator
Brand: Bonomi Valves
SKU: 8P2DAPVC-2-1/2

SKU: 8P2DAPVC-2-1/2

$1,040.99 Was: $1,226.00 You Save $185.01

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Size2-1/2"

Pressure Rating232 PSI at 73 °F

Body MaterialPVC

End ConnectionNPT and Socket Ends Included

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Pneumatically Actuated Ball Valve
Design Type	Dual Union Nut Locks
Air Supply Needed	80 PSI
Actuation Type	Pneumatic Double Acting
Brand	Bonomi Valves
Manufacturer Part #	8P2DAPVC-2-1/2
Size	2-1/2"

Materials & Construction

Body Material	PVC
Ball Material	PVC
Seat Material	P.T.F.E.
Packing Material	EPDM

Performance

Pressure Rating	232 PSI at 73 °F
Temp. Rating	-4°F to +250°F

Connections

Port	Full Port
End Connection	NPT and Socket Ends Included

Standards & Certifications

See Specification Sheet
