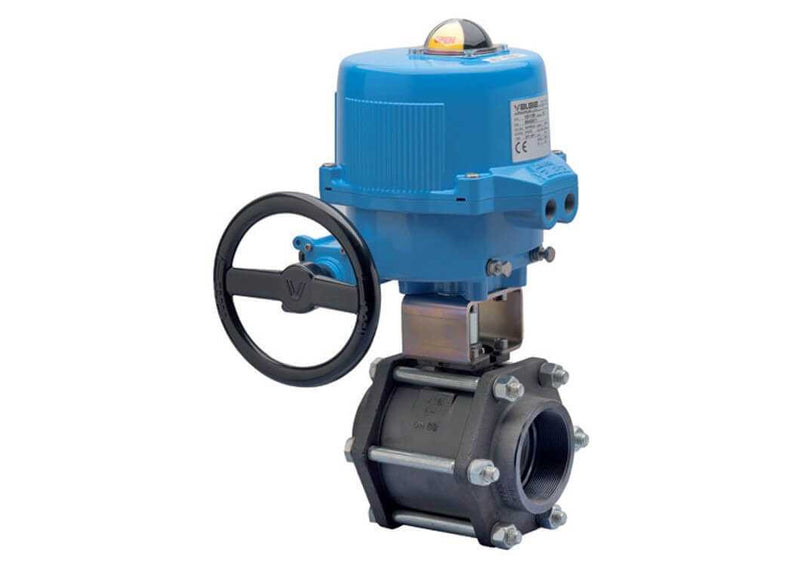

2-1/2" Bonomi M8E710064-00 - Ball Valve, 3 Piece, 2-Way, Carbon Steel, Socket Weld, Full Port, with Metal Electric Actuator

Name: 2-1/2" Bonomi M8E710064-00 - Ball Valve, 3 Piece, 2-Way, Carbon Steel, Socket Weld, Full Port, with Metal Electric Actuator
Brand: Bonomi Valves
SKU: M8E710064-002-2-1/2

SKU: M8E710064-002-2-1/2

$1,790.99 Was: $2,110.00 You Save $319.01

Available to Order

Available Sizes

3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Select Voltage: 24V AC/DC

Size2-1/2"

Pressure RatingSteam pressure to 250 psi

Body MaterialCarbon Steel

End ConnectionSocket Weld

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Electrically Actuated Ball Valve
Design Type	3 Piece
Control	On/Off
Available Voltages	12V/24V AC/DC and 100-240V AC
Actuation Type	Electric
Brand	Bonomi Valves
Manufacturer Part #	M8E710064-002-2-1/2
Size	2-1/2"

Materials & Construction

Body Material	Carbon Steel
Ball Material	Stainless Steel
Seat Material	R.T.F.E.
Packing Material	R.T.F.E.
Stem Design	Blow Out Proof

Performance

Pressure Rating	Steam pressure to 250 psi
Temp. Rating	-4°F to +131°F
NEMA Rating	NEMA 4 Housing

Connections

Port	Full Port
End Connection	Socket Weld

Standards & Certifications

See Specification Sheet
