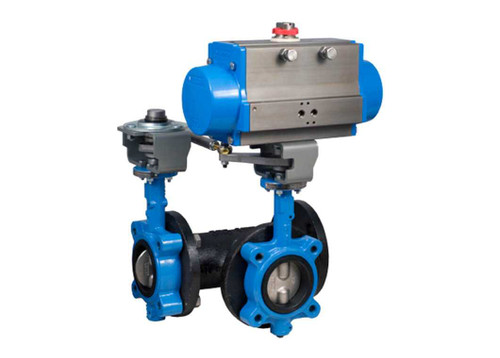

2 1/2" Bonomi SRN501S-T*-00- Butterfly Valve, 3 Way, T Assembly, Lug Style, Ductile Iron Body, CF8M Stainless Steel Disc, EPDM Seat, with Spring Return Pneumatic Actuator

Brand :

MSRP: $1,792.00
Starting At: $1,561.99
(You save $230.01 )
Size Dropdown:
True

Bonomi SRN501S-T*-00 Series - Technical Specification

Item
Pneumatically Actuated Butterfly Valve T Assembly
Body Style
Lug
Body Material
Ductile Iron
Disc Material
CF8M Stainless Steel
Seat Material
EPDM
Packing Material
EPDM
Temp. Rating
-4°F to +250°F
Pressure Class
ANSI 150
Air Supply Needed
80 PSI
Pressure Rating
250 PSI
Actuation Type
Spring Return
Approvals
See Specification Sheet
