Save 24%

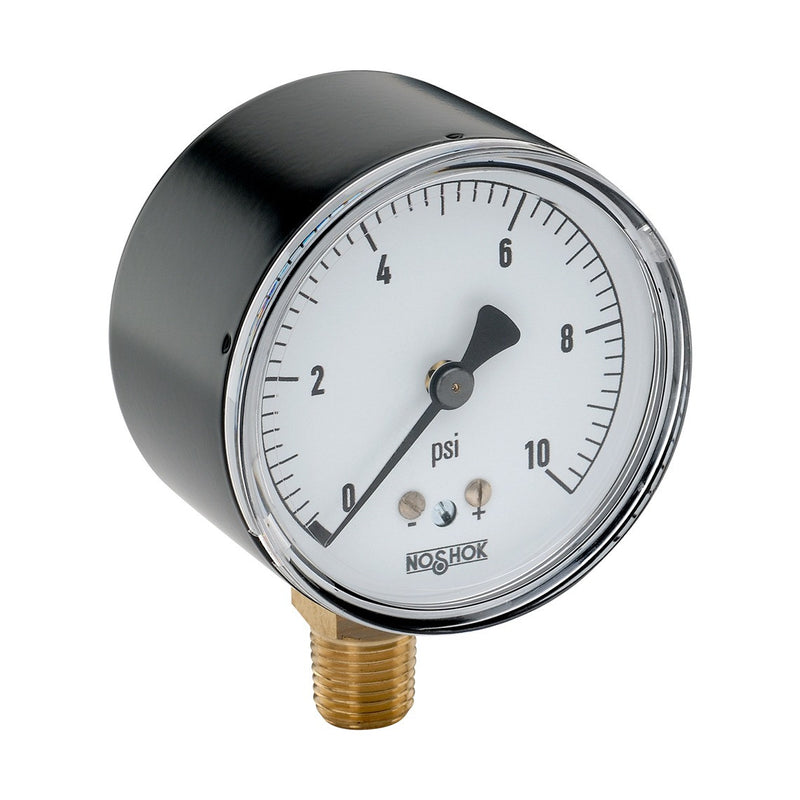

2-1/2" NOSHOK 200 Series Low Pressure Diaphragm Dry Pressure Gauges, 25-210-30-inH2O-vac-CFF, Black Steel Case, Copper Alloy Internals, 30 inH2O vac, 1/4" NPT Back Connection, Chrome Front Flange
SKU:
25-210-30-inH2O-vac-CFF
Made in the United States
$158.99
Price on request
Was: $210.91
You Save $51.92
Available
Connection Size1/4 in
Pressure Range-30 to 0 inH2O
Connection TypeNational Pipe Thread (NPT)
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Stock | Yes |
|---|---|
| Type | Low Pressure Gauge |
| Series | 200 |
| Full Scale Accuracy (±) | 1.6 % |
| Gauge Size | 2-1/2 in |
| Dial | Aluminum, white background with black scale. UV resistant |
| Case Type | Steel, Back Connection |
| Pointer | Black Finished Aluminum |
| Movement | Brass and Nickel-Silver with Highly Polished Bearing Surfaces |
| Warranty | 1 yr |
| Options | Chrome Front Flange |
| Brand | NOSHOK |
| Manufacturer Part # | 25-210-30-inH2O-vac-CFF |
| Size | 2-1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Lens/Display Material | Acrylic |
|---|---|
| Case Material | Black Painted Steel |
Performance
| Pressure Range | -30 to 0 inH2O |
|---|
Connections
| Connection Type | National Pipe Thread (NPT) |
|---|---|
| Connection Size | 1/4 in |
| Connection Location | Back |
| Connection Material | Brass |
Overview
200 Series - Low Pressure Diaphragm Dry Pressure Gauges
- Sensitive capsule-type non-fillable dry gauge
- Black painted Steel, Stainless Steel and impact-resistant ABS case
- Copper alloy and Brass wetted parts
