2-1/2" NOSHOK 50/75/100 Series Temperature Thermowells, 100-025-316-SS, 1" NPT Straight Shank, 1/2" NPSM Instrument Connection, 316 Stainless Steel Thermowell
SKU:
100-025-316-SS
Made in the United States
$57.99
Price on request
Was: $91.72
You Save $33.73
Available
Available Sizes
2-1/2"
6"
Process Connection Size1 in
Pressure Ratings at 70 Degree Fahrenheit (ºF)7,000 psi
Process Connection TypeNational Pipe Thread (NPT)
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Thermowell |
|---|---|
| Style | Straight Shank |
| Bore Size | 0.260 in |
| Shank Diameter [Max] | 0.750 in |
| Insertion Diameter B [Max] | 3/4 in |
| Warranty | 1 yr |
| Stock | Yes |
| Brand | NOSHOK |
| Manufacturer Part # | 100-025-316-SS |
| Size | 2-1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Stem Length | 2-1/2 in |
|---|---|
| Material | 316 Stainless Steel |
Performance
| Pressure Ratings at 70 Degree Fahrenheit (ºF) | 7,000 psi |
|---|
Connections
| Process Connection Size | 1 in |
|---|---|
| Process Connection Type | National Pipe Thread (NPT) |
| Instrument Connection Size | 1/2 in |
| Instrument Connection Type | National Pipe Straight Mechanical (NPSM) |
Overview

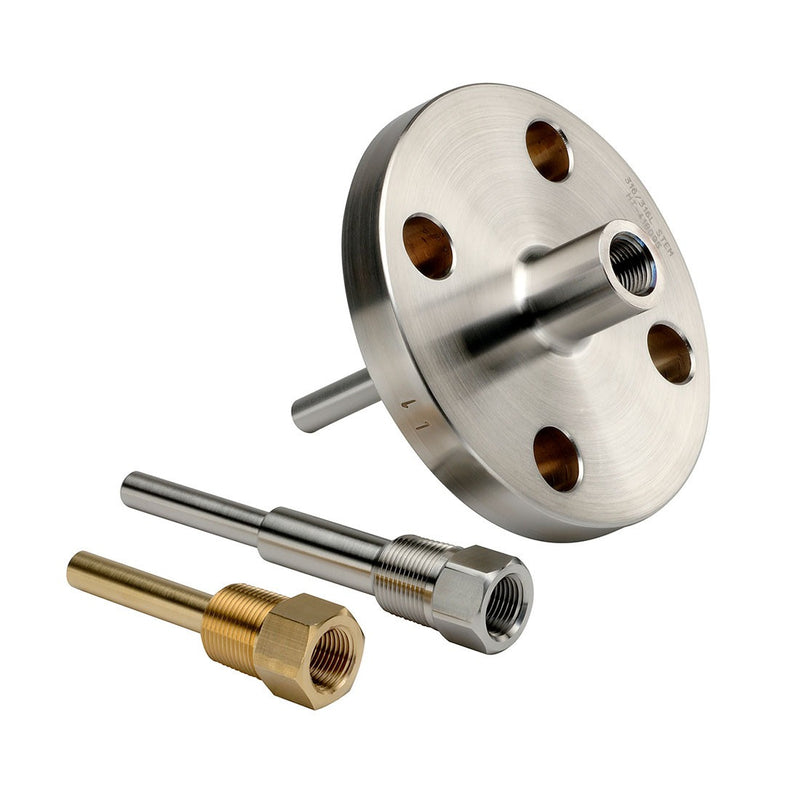

50/75/100 Series - Thermowells
- Allows a temperature instrument to be removed and replaced without shutting down and draining the process
- Reduces the possibility of damage to the temperature instrument
- Provides protection to the operator
- 1/2" NPSM instrument connection, 3/4" NPT process connection standard - 1/2" NPT, 1" NPT, flanged and sanitary options available
- 150 Class and 300 Class raised face flanged thermowells available
