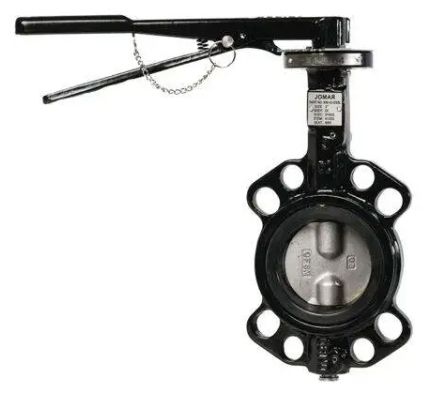

2" Jomar Valve BFV-Wafer EPDM, Wafer Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc, EPDM Seat, Lever Handle Butterfly Valve
Brand : Jomar Valve
MSRP: $181.23
$129.99
(You save
$51.24
)
- SKU:
- 900-02DSEL
- Size:
- 2"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
2" Jomar Valve BFV-Wafer EPDM Butterfly Valve Technical Specs
Features
- Epoxy-Coated Finish
- EPDM, PTFE, Buna-N, or Viton Seats Available
- Square Stem for Direct Mount
- Ideal for Mounting Pneumatic and Electrical Actuators
- Easily Accepts Actuator with ISO 5211 Mounting Flange
- Seat-to-Flange Seal Eliminates Need for Flange Gaskets
- Designed for Commercial, Industrial, and Potable Water Applications up to 225 PSI
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- API 609
- MSS SP-67
- NSF 61 & NSF 372
Technical Specifications
Item
Butterfly Valve
Size
2"
Body Material
Ductile Iron - Epoxy Coated
Seat Material
EPDM
Body Type
Wafer Style
Handle Type
Lever Handle
Disc Material
CF8M Stainless Steel
Temp. Range
-30°F to 250°F
Pressure Rating
225 psi
