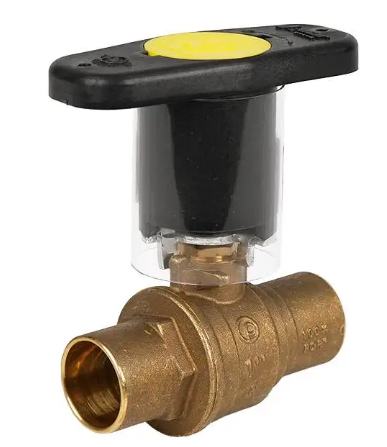

2" Jomar Valve S-100CSSG-IH, 2 Piece, Full Port, Soldered Ends, Dezincification Reistant Brass, Stainless Steel Ball & Stem, Thermal-Block Insulated Handle, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $396.96
Starting At:
$283.99
(You save
$112.97
)
- SKU:
- 100-418SSG-IH
- Size:
- 2"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
Country of Origin: Made in Italy
2" Jomar Valve S-100CSSG-IH 2-Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Triple Sealing Stem With 2 FKM O-Rings and PTFE G300 Seal
- Blow-out Proof Stem
- 100% Leak Tested
- 100% Made in Italy
- Leakproof stem - Lifetime Warranty
- 29 in-Hg vacuum rating
- Wetted surfaces contain less than .25% lead content
Certifications/Approvals
- NSF 372
- NSF 61-8
- NSF 61 - Annex G
- UL-2043 Certified Insulated Handle
- ASME/ANSI B16.18
- MSS SP-110
- Meets IS0 6509
Technical Specifications
Item
Ball Valve
Size
2"
Port
Full Port
Design Type
2-Piece
End Connection
Soldered Ends
Body Material
Lead-Free Brass - C27453
Ball Material
316 Stainless Steel
Handle Type
Thermal-Block Insulated Locking Handle
Seat Material
PTFE
Stem Material
316 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
500 psi, 150 psi Steam
Max Temp
400°F
